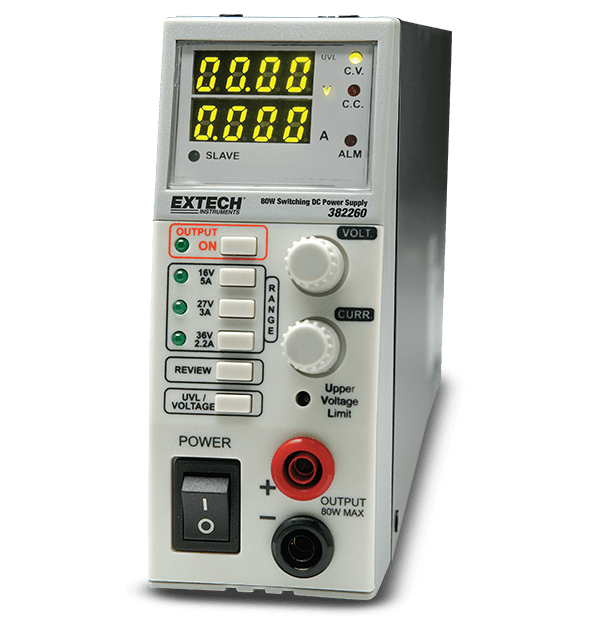

Extech 382260
80W Switching Mode DC Power Supply
Extech’s 382260 is an 80 W Switching Mode DC Power Supply. Its has three selectable output ranges that perform like three power supplies in one: 0 V to 16 V (0 A to 5 A), 0 V to 27 V (0 A to 3 A), and 0 V to 36 V (0 A to 2.2 A). This compact and lightweight unit provides easy portability and is ideal for tight workbenches with limited space. The 382260 features 4-Digit LED displays, front and rear output terminals, and remote sensing for accurate applied voltage at load point. Complete with AC Power cord.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente de salida | 0.100 to 5.100A, 0.100 to 3.100A, 0.100 to 2.300A |
| Fluctuación y ruido | <30mVpp |
| Precisión básica de corriente de salida | ±1% |
| Precisión básica de voltaje de salida | ±1% |
| Regulación de voltaje de carga | <20mV |
| Regulación de voltaje de línea | <4mV |
| Voltaje de salida | 0.10 to 16.40V, 0.10 to 27.60V, 0.10 to 36.80V |
| Detalles adicionales | |
|---|---|
| Alimentación | 90-264VAC; 47-63Hz |
| Certificaciones | CE |
| Dimensiones | 13 × 5 × 2" (330 × 127 × 53.5mm) |
| Garantía | 2 years |
| Peso | 4.2lbs (1.9kg) |
Resources & Support
User Manual
Manual del usuário de Extech 382260
User Manual
Extech 382260 User Manual GB
Datasheet
Extech 382260 Datasheet
