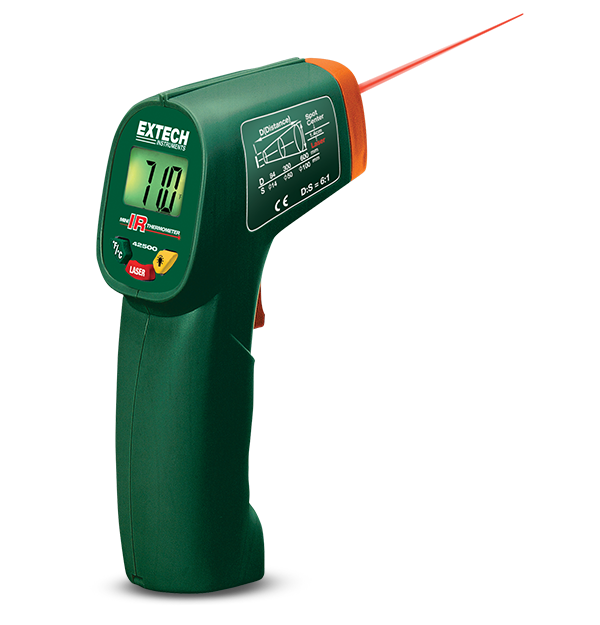

Extech 42500
Mini IR Thermometer
The Extech 42500 Mini IR Thermometer provides fast temperature measurements without contact simply by pointing at the object being measured. The built-in laser improves aim by centering the measuring area. Readings are selectable in °C or °F, and the backlit display allows readings in dimly lit areas. The temperature range is -20°C to 260°C (-4°F to 500°F). Applications include checking heating and A/C ducts, motors, bearings, tires, radiators, cooking grills, refrigerators, and much more. Includes 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Emisividad | 0.95, fixed |
| Localización de objetivo | single laser |
| Relación distancia-objetivo | 6:1 |
| Temperatura (IR), precisión básica | -4 to 500 °F (-20 to 260 °C) |
| Temperatura (IR), resolución máx. | ±3% of reading or ±6 °F/ ±3 °C (whichever is greater) |
| Temperatura (RTD) | 1 °F/ °C |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 3.2 × 1.7 × 6.7" (82 × 44 × 170mm) |
| Garantía | 2 years |
| Peso | 4.9oz (140g) |
