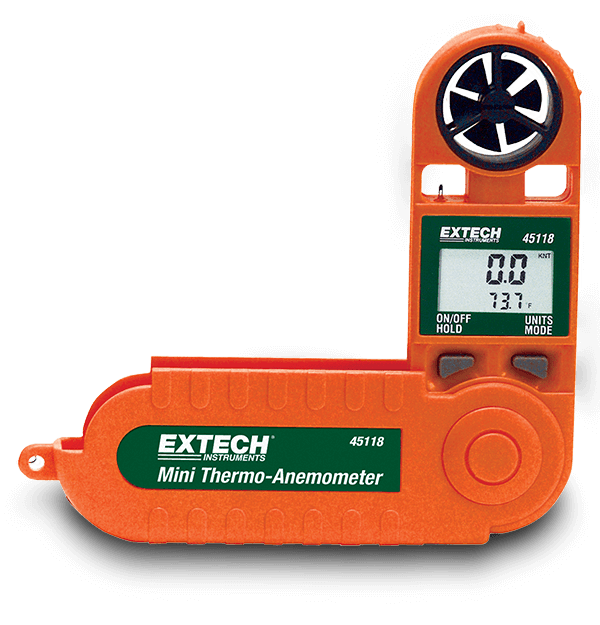

Extech 45118
Mini Thermo-Anemometer
The 45118 is a Waterproof pocket sized Thermo-Anemometer for Air Velocity, Temperature and Wind-chill measurements. Simultaneously display Air Velocity and Temperature or Wind-chill on the LCD screen. Selectable averaging function of 5, 10, or 13 second intervals. Fold up protective housing extends to 9 in. (229mm) for a better reach. Tripod mountable. Features Data Hold with Auto power off functions. Complete with battery and 43 in. lanyard.
Especificaciones
| Especificaciones generales | |
|---|---|
| Fuerza de vientos Beaufort | 1 to 8 BF |
| Precisión básica de fuerza de vientos Beaufort | ±1 BF |
| Resolución máxima de fuerza de vientos Beaufort | 1 BF |
| Temperatura (aire) | 0 to 122°F (-18 to 50°C) |
| Temperatura (aire), precisión básica | ±1.8°F/±1°C |
| Temperatura (aire), resolución máx. | 0.1° |
| Velocidad de aire (km/h) | 4.0 to 72.0 km/h |
| Velocidad de aire (km/h), precisión básica | ±(3% of reading + 1.4 km/h) |
| Velocidad de aire (pies/mín) | 216 to 3936 ft/min |
| Velocidad de aire (pies/mín), precisión básica | ±(3% of reading + 40 ft/min) |
| Velocidad del aire (km/h), resolución máxima | 0.7 km/h |
| Velocidad del aire (m/s) | 1.1 to 20 m/s |
| Velocidad del aire (m/s), precisión básica | ±(3% of reading + 0.2 m/s) |
| Velocidad del aire (m/s), resolución máxima | 0.1 m/s |
| Velocidad del aire (mph) | 2.5 to 44.7 mph |
| Velocidad del aire (mph), precisión básica | ±(3% of reading + 0.4 mph) |
| Velocidad del aire (mph), resolución máx. | 0.2 mph |
| Velocidad del aire (nudos) | 2.1 to 38.9 knots |
| Velocidad del aire (nudos), precisión básica | ±(3% of reading + 0.6 knots) |
| Velocidad del aire (nudos), resolución máx. | 0.3 knots |
| Velocidad del aire (pies/min), resolución máxima | 20 ft/min |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × CR2032 (3V) battery |
| Certificaciones | CE |
| Dimensiones | 5.25 × 2.75 × 0.75" (133 × 70 × 19mm) |
| Garantía | 2 years |
| Pantalla | Segment LCD |
| Peso | 3oz (95g) |
| Álabe | 1" (24mm) diameter |
Resources & Support
User Manual
Manual del usuário de Extech 45118
User Manual
Extech 45118 User Manual
Certification
Extech 45118 Declaration of Conformity
Datasheet
Extech 45118-45158 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
