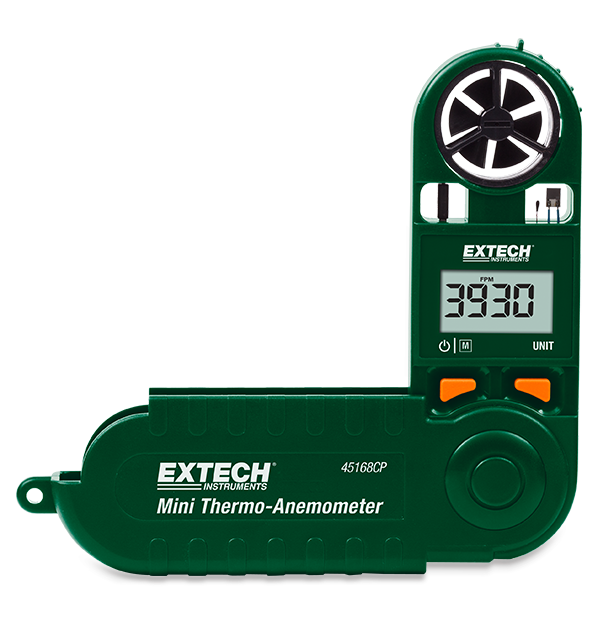

Extech 45168CP
Mini Thermo-Anemometer with Built-in Compass
The Extech 45168CP is a Mini Thermo-Anemometer which measures windspeed in ft/min, MPH, m/s, km/h, knots and in beaufort force with 10 second averaging function. Additional measurements include temperature, relative humidity, dew point, wet bulb, and windchill. The built-in compass provides wind direction and 360° readings, plus it has an easy-to-use calibration procedure for improved accuracy. Its water resistant housing floats and drop-tested to 1.8 m (6 ft). Featuring a replaceable, non-corrosive, plastic wind vane (impeller) and a tripod mount for hands free use. Complete with a CR2032 battery and a lanyard.
Especificaciones
| Especificaciones generales | |
|---|---|
| Brújula | 0 to 360° |
| Brújula, resolución máx. | 1° |
| Bulbo húmedo | 23 °F to 122 °F (-5 to 50 °C) |
| Bulbo húmedo, resolución máx. | 0.1 ° |
| Fuerza de vientos Beaufort | 1 to 8 BF |
| Humedad relativa | 0.1% to 99.9% |
| Precisión básica de brújula | ±2° |
| Precisión básica de fuerza de vientos Beaufort | ±1 BF |
| Precisión básica de humedad relativa | ±3% |
| Punto de condensación | -4 °F to 122 °F (-20 to 50 °C) |
| Resolución máxima de fuerza de vientos Beaufort | 1 BF |
| Resolución máxima de humedad relativa | 0.10% |
| Resolución máxima de punto de rocío | 0.1 ° |
| Temperatura (aire) | 5 to 122 °F (-15 to 50 °C) |
| Temperatura (aire), precisión básica | ±1.8 °F/1 °C |
| Temperatura (aire), resolución máx. | 0.1 ° |
| Velocidad de aire (km/h) | 0.8 to 72.0 km/h |
| Velocidad de aire (km/h), precisión básica | ±(3% of reading + 1.4 km/h) |
| Velocidad de aire (pies/mín) | 60 to 3937 ft/min |
| Velocidad de aire (pies/mín), precisión básica | ±(3% of reading + 40 ft/min) |
| Velocidad del aire (km/h), resolución máxima | 0.1 km/h |
| Velocidad del aire (m/s) | 1.1 to 20 m/s |
| Velocidad del aire (m/s), precisión básica | ±(3% of reading + 0.2 m/s) |
| Velocidad del aire (m/s), resolución máxima | 0.1 m/s |
| Velocidad del aire (mph) | 0.5 to 44.7 MPH |
| Velocidad del aire (mph), precisión básica | ±(3% of reading + 0.4 MPH) |
| Velocidad del aire (mph), resolución máx. | 0.1 MPH |
| Velocidad del aire (nudos) | 0.4 to 38.8 knots |
| Velocidad del aire (nudos), precisión básica | ±(3% of reading + 0.6 knots) |
| Velocidad del aire (nudos), resolución máx. | 0.1 knots |
| Velocidad del aire (pies/min), resolución máxima | 2 ft/min |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × CR2032 (1.5V) lithium battery |
| Certificaciones | CE |
| Dimensiones | 5.51 × 1.77 × 0.98" (140 × 45 × 25mm) |
| Garantía | 2 years |
| Peso | 3oz (95g) |
