Extech 475044-SD
High Capacity Force Gauge/Datalogger

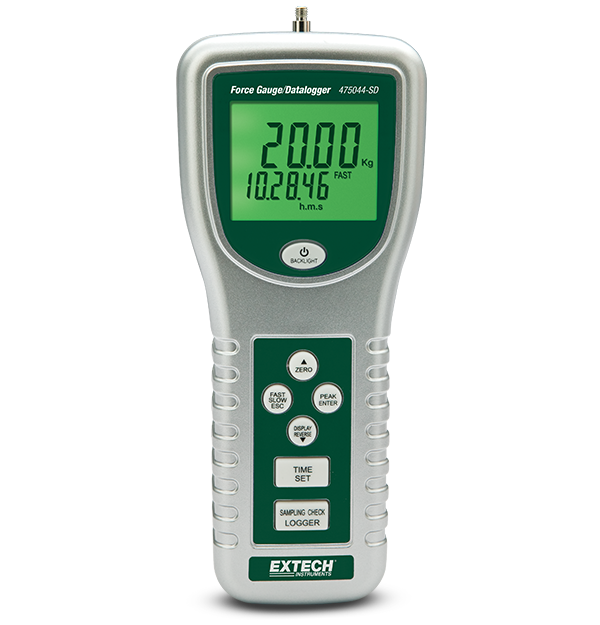

The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacidad de sobrecarga | 30kg |
| Detección a escala completa | 2.00mm |
| Fuerza | 44lbs, 20kg, 196 Newtons |
| Fuerza, resolución máx. | 0.01lbs, 0.01kg, 0.05 Newtons |
| Memoria | SD Card |
| Precisión básica de fuerza | ±(0.5%) |
| Tasa de actualización | Fast mode 0.2secs; Slow mode 0.6secs |
| Tipo de transductor | Load cell |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AA batteries |
| Certificaciones | CE |
| Dimensiones | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Garantía | 2 years |
| Peso | 1.4 lbs (650g) |
Resources & Support
User Manual
Manual del usuário de Extech 475040-SD 475044-SD
Datasheet
Extech 475040-SD-475044-SD Datasheet
Certification
Extech 475044-SD Declaration of Conformity
User Manual
Extech 475040-SD475044-SD User Manual GB
