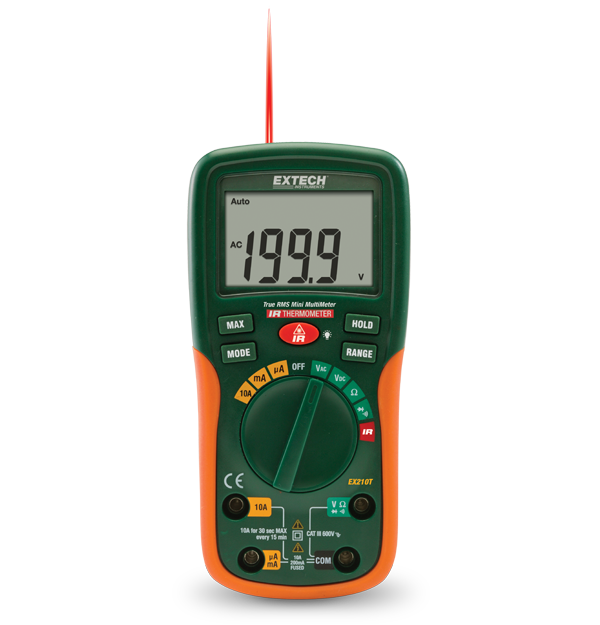

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 10A |
| Corriente CA, resolución máx. | 0.1µA |
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 0.1µA |
| Precisión básica de voltaje CD | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 20MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| RMS real | Yes |
| Temperatura (IR), precisión básica | -5 to 446 °F (-20 to 230 °C) |
| Temperatura (RTD) | 0.1°F/°C |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1mV |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantía | 2 years |
| Peso | 9.17oz (260g) |
Recursos y asistencia
User Manual
Manual del usuário de Extech EX210 EX210T
Certification
Extech EX210T Declaration of Conformity
User Manual
Extech EX210 EX210T User Manual
Datasheet
Extech EX205T EX210T Datasheet
