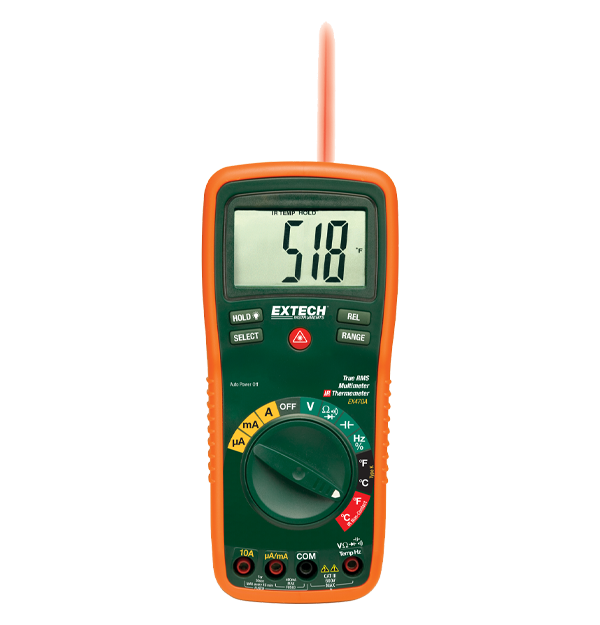

Extech EX470
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470 True RMS Multimeter and Infrared Thermometer with 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Multimeter functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 0.01nF to 100µF |
| Ciclo de trabajo | 0.1% to 99.9% |
| Corriente CA | 0.1µA to 20A |
| Corriente CC | 0.1µA to 20A |
| Frecuencia | 0.001Hz to 10MHz |
| Precisión básica de voltaje CD | ±0.3% |
| Resistencia | 0.1Ω to 40MΩ |
| RMS real | Yes |
| Temperatura (IR), precisión básica | 58 to 518°F (-50 to 270°C) |
| Temperatura (tipo K), resolución máx. | -4 to 1382°F (-20 to 750°C) |
| Voltaje CA | 0.1mV to 750V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 1000V, CATIV - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Garantía | 3 years |
| Peso | 12.3oz (349g) |
Resources & Support
User Manual
Manual del usuário de Extech EX470
Datasheet
Hoja de datos de Extech EX4xx
User Manual
Extech EX470 User Manual
Datasheet
Extech EX4xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
