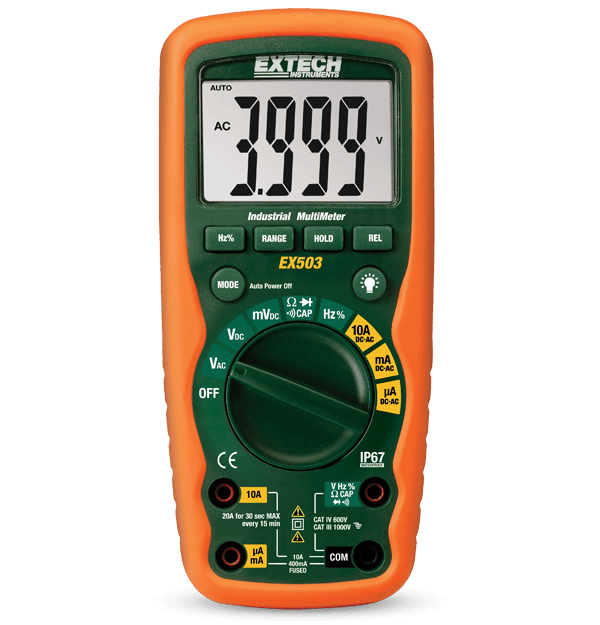

Extech EX503
10 Function Heavy Duty Industrial MultiMeter
The Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test, and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 0.01nF to 100ΩF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Continuidad | Yes |
| Corriente CA | 0.1µA to 10A |
| Corriente CC | 0.1µA to 10A |
| Frecuencia | Electrical: 5Hz to 1kHz, Electronic: 0.001Hz to 10 MHz |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ωto 40MΩ |
| RMS real | Yes |
| Voltaje CA | 0.1mV to 1000V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 1000V, CATIV - 600V |
| Certificaciones | CE, UL |
| Clasificación IP | IP67 |
| Dimensiones | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Garantía | 3 years |
| Pantalla | 4000-count segment LCD |
| Peso | 12.3oz (349g) |
