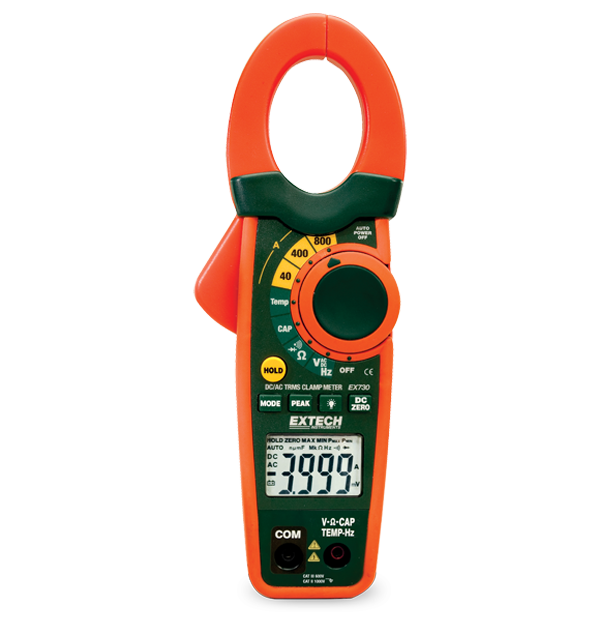

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 0.001nF to 40,000µF |
| Continuidad | Yes |
| Corriente CA | 0.01 to 800A |
| Corriente CC | 0.1 to 800A |
| Corriente de inserción | Yes |
| Frecuencia | 0.001 to 4kHz |
| Precisión básica de corriente CA | ±2.5% |
| Precisión básica de corriente CD | ±2.5% |
| Precisión básica de frecuencia | ±1.5% |
| Precisión básica de voltaje CA | ±1.5% |
| Precisión básica de voltaje CD | ±1.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1 to 40MΩ |
| RMS real | Yes |
| Tamaño de mandíbula | 1.2" (30mm), conductors up to 500MCM |
| Temperatura (tipo K), resolución máx. | -4 to 1400°F (-20 to 760°C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 0.1mV to 600V |
| Voltaje CC | 0.1mV to 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| Garantía | 2 years |
| Peso | 10.7 oz (303g) |
