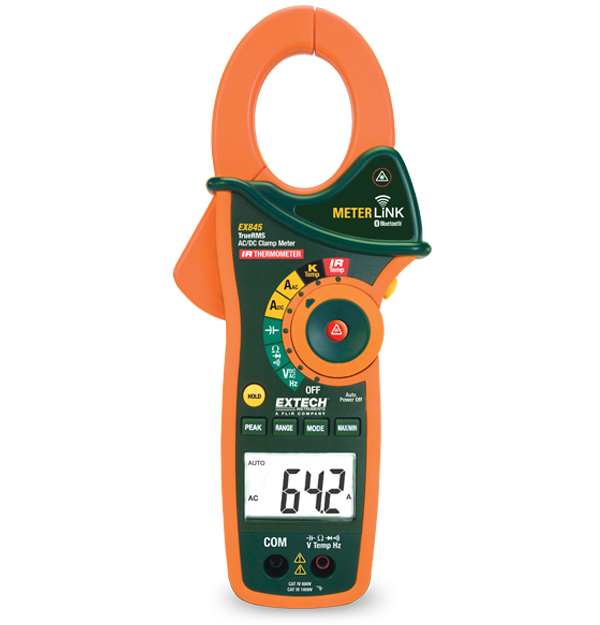

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 0.001nF to 40,000µF |
| Continuidad | Yes |
| Corriente CA | 0.1 to 1000A |
| Corriente CC | 0.1 to 1000A |
| Corriente de inserción | Yes |
| Frecuencia | 0.001kHz to 4kHz |
| Precisión básica de corriente CA | ±2.8% |
| Precisión básica de corriente CD | ±2.8% |
| Precisión básica de frecuencia | ±1.5% |
| Precisión básica de voltaje CA | ±1.5% |
| Precisión básica de voltaje CD | ±2.8% |
| Prueba de diodos | Yes |
| Resistencia | 0.1 to 40MΩ |
| RMS real | Yes |
| Tamaño de mandíbula | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Temperatura (IR), precisión básica | -58 to 518°F (-50 to 270°C) |
| Temperatura (IR), resolución máx. | ±2.0% of reading or ±4°F/±2°C |
| Temperatura (tipo K), resolución máx. | -4 to 1400°F (-20 to 760°C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 0.1mV to 1000V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 1000V, CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Garantía | 3 years |
| Peso | 13.6oz (386g) |
