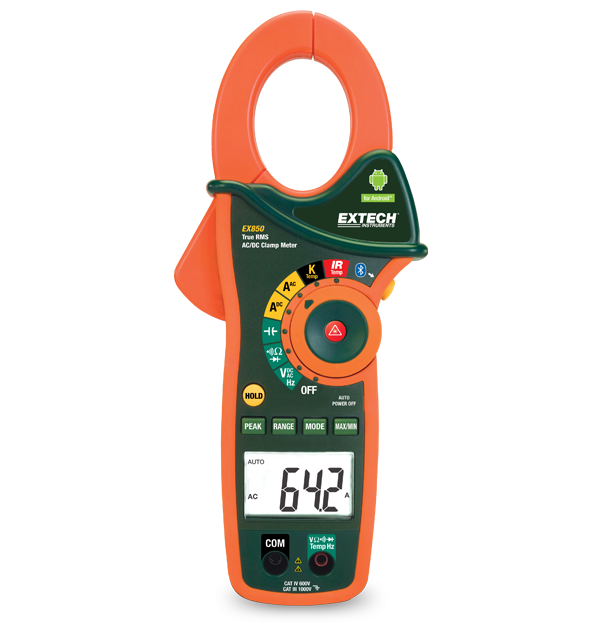

Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®
The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 0.001nF to 40,000µF |
| Continuidad | Yes |
| Corriente CA | 0.1 to 1000A |
| Corriente CC | 0.1 to 1000A |
| Corriente de inserción | Yes |
| Frecuencia | 0.001kHz to 4kHz |
| Precisión básica de corriente CA | ±2.8% |
| Precisión básica de corriente CD | ±2.8% |
| Precisión básica de frecuencia | ±1.5% |
| Precisión básica de voltaje CA | ±1.5% |
| Precisión básica de voltaje CD | ±2.8% |
| Prueba de diodos | Yes |
| Resistencia | 0.1 to 40MΩ |
| RMS real | Yes |
| Tamaño de mandíbula | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Temperatura (IR), precisión básica | -58 to 518°F (-50 to 270°C) |
| Temperatura (IR), resolución máx. | ±2.0% of reading or ±4°F/±2°C |
| Temperatura (tipo K), resolución máx. | -4 to 1400°F (-20 to 760°C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 0.1mV to 1000V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 1000V, CATIV - 600V |
| Certificaciones | CE |
| Dimensiones | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Garantía | 2 Years |
| Peso | 13.6oz (386g) |
