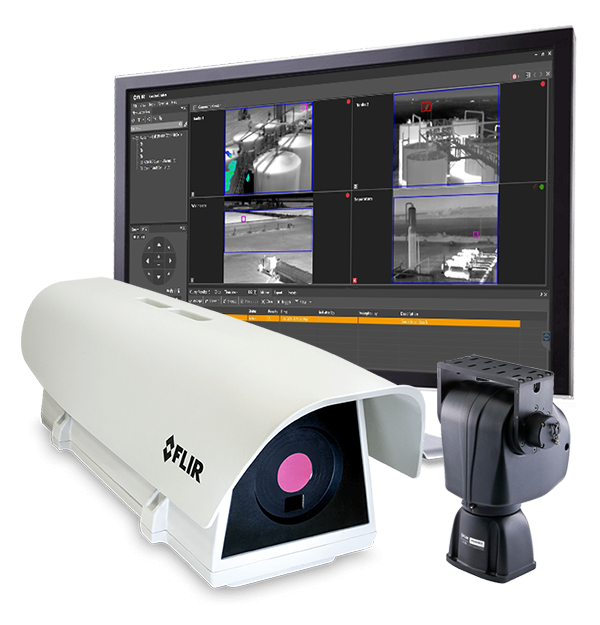

FLIR ADGiLE™
Automated Methane Monitoring Solution with Optical Gas Imaging
Product Variations
The FLIR ADGiLE™ system is an advanced methane detection solution designed to provide continuous and autonomous monitoring of gas leaks. Integrating over a decade of FLIR’s advanced Optical Gas Imaging (OGI) technology, ADGiLE enables operators to quickly identify and address methane emissions. This system significantly reduces the need for manual inspections, offering real-time alerts and visual insights that help users act swiftly to prevent hazards and maintain operational efficiency.
Methane, Meet Your Match
Operating 24/7 for continuous monitoring of methane emissions. This continuous monitoring is critical for sites where emissions can occur at any time.
Advanced leak detection analytics to precisely visualize and pinpoint methane emissions, enabling you to detect leaks quickly and efficiently.
Accurately distinguish between operational leaks and fugitive leak emissions to improve safety and operational efficiency.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity_NETD | <25 mK at 30°C (86°F) |
| Spectral Range | Uncooled microbolometer: 7.0 µm to 8.5 µm |
| Imaging & Optical | |
|---|---|
| Detector Pitch | 25 µm |
| f number | 1.04 |
| Field of view [FOV] | 25° × 19° |
| Field of view [FOV]_Focal Length | 18 mm (0.71 in) |
| Focus | • One-shot contrast • Motorized • Manual |
| Gas Sensitivity [NECL] | CH4: <100 ppm × m (ΔT = 10°C, Distance = 1 m) |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | Without MSX: 0.3 m (0.98 ft) With MSX: 0.65 m (2.1 ft) |
| Spatial resolution [IFOV] | 1.4 mrad/pixel |
| Spectral Range | Uncooled microbolometer: 7.0 µm to 8.5 µm |
| Thermal Sensitivity_NETD | <25 mK at 30°C (86°F) |
| Measurement & Analysis | |
|---|---|
| Accuracy | Range 1: -20°C to 80°C (-4°F to 176°F) ±3°C (±5°F) Range 2: 0°C to 250°C (212°F to 482°F) / 0°C to 100°C (32°F to 212°F):±3°C / 100° to 250°C (212° to 482°F):±3% Range 3: 100°C to 500°C (212°F to 932°F):±3% |
| Atmospheric transmission correction | Based on inputs of distance, atmospheric temperature, and relative humidity |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| External Optics and Windows Correction | Based on input of optics/window transmission and temperature |
| Measurement Corrections | Global object parameters |
| Object Temperature Range | Range 1: -20°C to 80°C (-4°F to 176°F) Range 2: 0°C to 250°C (212°F to 482°F) Range 3: 100°C to 500°C (212°F to 932°F) |
| Reflected apparent temperature correction | Based on input of reflected temperature |
| General | |
|---|---|
| Housing material | Aluminium |
| Included | FLIR GF77f 25° + FLIR ADGiLE Analytics: Thermal camera in protective housing Extra cable glands for auxiliary cables Control cabinet (incl. Edge PC) Adapter bracket Screw kit Power/Com cable Ethernet cable, RJ45 Cardboard box environmental housing fixed Insert cardboard box environmental housing Printed documentation including the username and password for log in to the web interface of the camera FLIR GF77pt 25° + FLIR ADGiLE Analytics: Thermal camera in protective housing Extra cable glands for auxiliary cables Control cabinet (incl. Edge PC) Adapter bracket Screw kit FLIR PTU-D100E pan/tilt unit Power/Com cable Ethernet cable, RJ45 Cardboard box environmental housing fixed Insert cardboard box environmental housing Printed documentation including the username and password for log in to the web interface of the camera |
| Size [L × W × H] | Camera: 510 mm × 177 mm × 229 mm (20.1 in × 6.97 in × 9.02 in) Control unit (external): 700 mm × 530 mm × 265 mm (27.5 in × 20.8 in × 10.4 in) Mounting plate: 535 mm × 430 mm (21.06 in × 16.9 in) |
| Weight | FLIR GF77f 25° + FLIR ADGiLE Analytics: 5.90 kg (13.0 lb) FLIR GF77pt 25° + FLIR ADGiLE Analytics: 15 kg (33 lb) Pan-tilt specifications: https://www.flir.com/products/ptu-d100e |
| Power | |
|---|---|
| External Power Operation | Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus |
| External Voltage | PoE Class 4 (25 W) |
| Power Consumption | 21 W |
| Environmental & Certifications | |
|---|---|
| Corrosion | Salty fog resistance: ISO9227, to 1000 hours |
| EMC | EN 55032:2015 Emission Requirements EN 55035:2017 Immunity Requirements FCC – Title 47 CFR Part 15:2019 ICES-001 Issue 4:2014 |
| Encapsulation | IP67 |
| Humidity [operating and storage] | Relative humidity: from 5% up to 95% |
| Lens Transmission Correction | Automatic, based on signals from internal sensors |
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) |
| Storage Temperature Range | IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-104°F to 158°F) for 16 hours |
