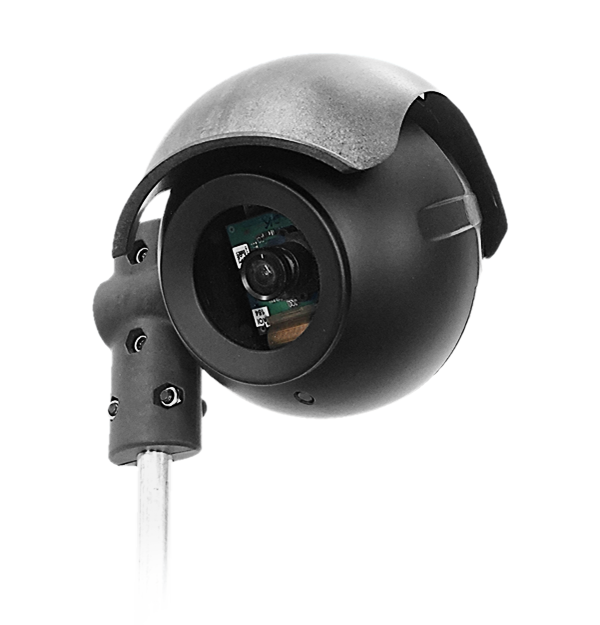

FLIR TrafiCam™ x-stream2
Sensor de presencia de vehículos y recopilación de datos
El FLIR TrafiCam x-stream2 combina una cámara digital y un detector de vídeo en un solo sensor de presencia de vehículos. El TrafiCam x-stream2, que detecta vehículos parados y en movimiento en intersecciones señalizadas, trasmite información de presencia de vehículos a un controlador de tráfico a través de salidas de detección o comunicación TCP/IP para lograr una temporización de señales adaptativa y sensible. Cada uno de los rentables sensores TrafiCam x-stream2 ayuda a reducir el tiempo que los vehículos permanecen parados y optimiza el flujo del tráfico.
Especificaciones
| Descripción general del sistema | |
|---|---|
| Detection Zones | 24 vehicle presence detection zones 8 traffic data zones (also for traffic flow monitoring) |
| Functionality | TrafiCam x-stream2 wide angle: Vehicle Presence Detection
Traffic Data Collection TrafiCam x-stream2 narrow angle: Vehicle Presence Detection Traffic Data Collection |
| Comunicaciones | |
|---|---|
| Communication PC_Sensor | Ethernet via TI BPL2 interface or PoE injector |
| Compression | H.264, MJPEG |
| Configuration | Web page setup |
| Electricidad | |
|---|---|
| Detection Distance | TrafiCam x-stream2 wide angle: 0-25 m / 0-85 ft TrafiCam x-stream2 narrow angle: 15-75 m / 50-250 ft |
| FCC | FCC part 15 class A |
| Input Power | 24-42 VAC / 24-48 VDC |
| Output Contacts | 1 N/O and 1 N/C dry contact direct 16 N/C dry contacts via TI BPL2 interface 4 N/C dry contacts via TI BPL2 EDGE interface (more with additional 4 I/O USB expansion boards) SDLC to traffic light controller via TI BPL2 EDGE interface and PIM module |
| PoE | PoE mode A for configuration, video streaming and data |
| Power Consumption | Avg 6 W / Peak 9 W |
| Powerline Communication | Broadband over Powerline communication via TI BPL2 interface |
| Características medioambientales | |
|---|---|
| EU Directives | EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU |
| IP Rating | IP 67 |
| Materials | All weatherproof UV |
| Shock and Vibration | NEMA TS2 specs |
| Temperature Range | -34°C to + 74°C / -29°F to +165°F |
| Generación de imágenes y óptica | |
|---|---|
| CMOS type | 1/4" color |
| Focal Length | TrafiCam x-stream2 wide angle: 2.1 mm TrafiCam x-stream2 narrow angle: 6mm |
| Focus Distance | 6.0 mm |
| Frame Rate | 25 fps |
| Resolution | VGA (640 × 480) |
| Streaming Video | RTSP |
| Mecánica | |
|---|---|
| Dimensions [incl mounting bracket] | TrafiCam x-stream2 wide angle: Vertically mounted: 45 cm x 16 cm x 12 cm / 9.8 in x 6.3 in x 4.7 in
Horizontally mounted: 41 cm x 18 cm x 12 cm / 16.2 in x 7.1 inx 4.7 in TrafiCam x-stream2 narrow angle: Vertically mounted: 45 cm x 16 cm x 12 cm / 9.8 in x 6.3 in x 4.7 in Horizontally mounted: 41 cm x 18 cm x 12 cm / 16.2 in x 7.1 in x 4.7 in |
| Material | Aluminum housing with integrated polycarbonate sun shield |
