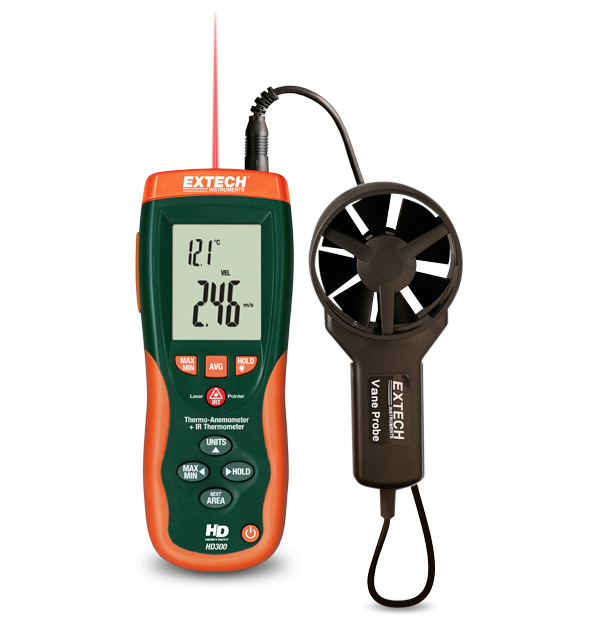

Extech HD300
CFM/CMM Thermo-Anemometer with built-in InfraRed Thermometer
The Extech HD300 is a Thermo-Anemometer with an Infrared Thermometer that measures remote surface temperatures to 500°C (932°F) with a 30:1 distance to target ratio and laser pointer. It can simultaneously display air flow in CFM/CMM or air velocity, plus ambient temperature. This meter has easy to set area dimensions that are stored in the meter's internal memory for the next power on. Additional features include a 9999 count LCD backlit display, 20 point average for airflow, and a heavy duty rugged double molded housing. Comes complete with a vane sensor with 120 cm (3.9 ft) cable, software with cable, carrying case, and 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Temperatura (aire) | 14 to 140°F (-10 to 60°C) |
| Temperatura (aire), precisión básica | ±4°F (2°C) |
| Temperatura (IR), precisión básica | -58 to 932°F (-50 to 500°C) |
| Temperatura (IR), resolución máx. | ±2% |
| Velocidad de aire (km/h) | 1.4 to 108.0 km/h |
| Velocidad de aire (km/h), precisión básica | ±3% |
| Velocidad de aire (pies/mín) | 80 to 5900 ft/min |
| Velocidad de aire (pies/mín), precisión básica | ±3% |
| Velocidad del aire (m/s) | 0.4 to 30.00 m/s |
| Velocidad del aire (m/s), precisión básica | ±3% |
| Velocidad del aire (mph) | 0.9 to 67.0 MPH |
| Velocidad del aire (mph), precisión básica | ±3% |
| Velocidad del aire (nudos) | 0.8 to 58.0 knots |
| Velocidad del aire (nudos), precisión básica | ±3% |
| Volumen de aire (CFM) | 0 to 999900 CFM |
| Volumen de aire (CFM), resolución máx. | 0.1CFM |
| Volumen de aire (CMM) | 0 to 999900 CMM |
| Volumen de aire (CMM), resolución máx. | 0.1CMM |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 8 × 3 × 1.9" (203 × 75 × 50mm) |
| Garantía | 3 years |
| Peso | 9.8oz (280g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD300 Software
User Manual
Manual del usuário de Extech HD300
User Manual
Extech HD300 User Manual
Certification
Extech HD300 Declaration of Conformity
Datasheet
Extech HD300 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
