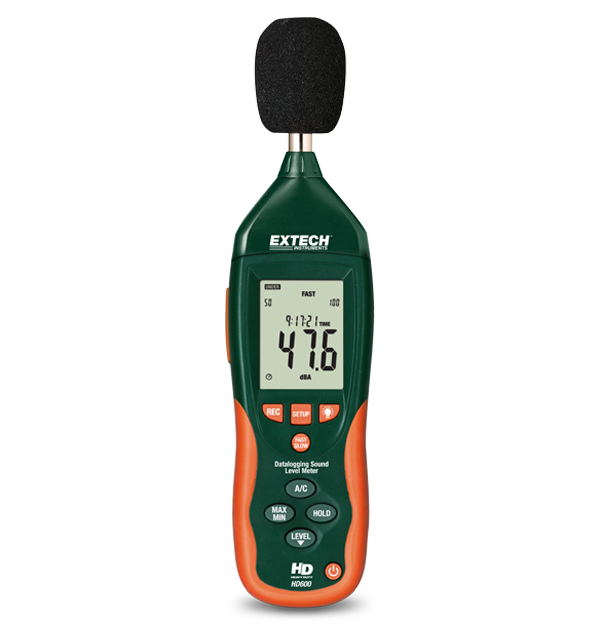

Extech HD600
Datalogging Sound Level Meter
The Extech HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 dB to 130 dB with ± 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. The unit features a rugged double molded housing and a built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9 V battery, and user manual.
Especificaciones
| Especificaciones generales | |
|---|---|
| Interfaz PC | USB |
| Memoria | 20,000 records |
| Micrófono | Condenser, 0.5” (12.7mm) |
| Ponderación | A,C |
| Rango de sonido (dB) | 30 to 130dB |
| Rango de sonido (dB), precisión básica | ±1.4dB |
| Salida analógica | AC/DC |
| Tiempo de respuesta | Fast/Slow |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 10 × 2.9 × 2" (255 × 75 × 50mm) |
| Garantía | 3 years |
| Peso | 12.3oz (350g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD600 Software
User Manual
Manual del usuário de Extech HD600
User Manual
Extech HD600 User Manual
Datasheet
Extech HD600 Datasheet
Certification
Extech HD600 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
