Discontinued

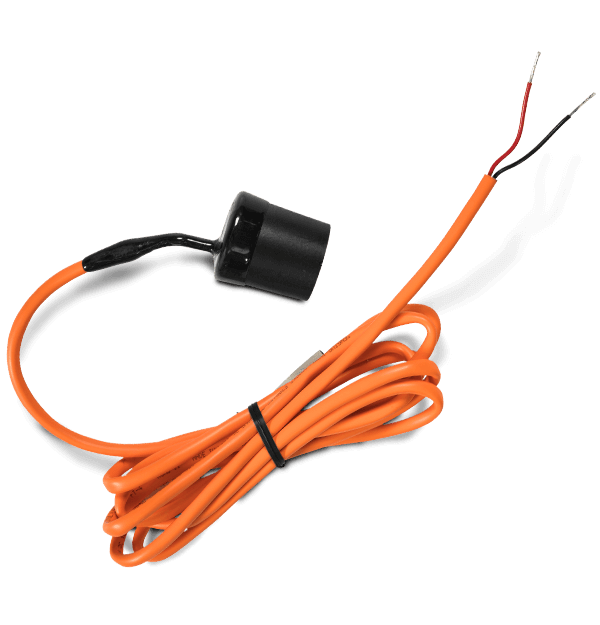

intelliRock III Maturity Logger
Real-Time Concrete Strength Logger
intelliRock Maturity Loggers analyze the time and temperature profile of in–place concrete to calculate its strength in real–time with the push of a button. The maturity loggers are based on ASTM C 1074 "Standard Practice for Estimating Concrete Strength by the Maturity Method."
Document Early Strength and Temperature Information
Speed up concrete operations and extend the construction calendar in cooler weather
Improve quality control with early validation of batching consistency while decreasing labor and material costs
The logger stores the current maturity and temperature value every minute for 180 days
Especificaciones
| Medición y análisis | |
|---|---|
| Almacenamiento de datos en registrador | 999 logger downloads |
| Curva de calibración | Holds 5 calibration curves for strength conversions |
| Id. de serie único | Yes |
| Madurez | Yes |
| Periodo de funcionamiento | 180 days |
| Periodo de integración de madurez | 1 minute |
| Precisión de tiempo | 1 minute per month |
| Prueba de lotes trazable del NIST | Yes |
| Rango de índice de dosis de sobrecarga | 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h) |
| Rango máximo de medición de temperatura | -20°C to 125°C (-4°F to 257°F) |
| Resolución de temperatura | 1°C |
| Temperatura | Yes |
| Tiempo | Yes |
| Tiempo y temperatura de almacenamiento máximos | 85°C (185°F) for 5 years |
| Índice de edición de la temperatura | 1 minute (resolution for min/max) |
| Características medioambientales y certificaciones | |
|---|---|
| Certificaciones y estándares | ASTM C 1074 |
