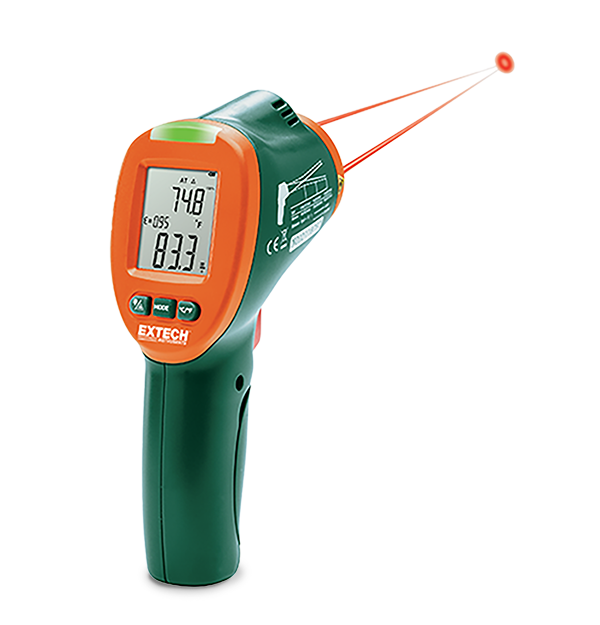

Extech IRT600
Dual Laser IR Thermal Condensation Scanner
The Extech IRT600 is a Dual Laser IR Thermal Condensation Scanner. This 12:1 infrared psychrometer with a 3 color LED dew point alarm measures temperature and humidity, then calculates dew point and warns the user when conditions for mold growth exist. It can be great for processes that require surface temperature control and monitoring. A green LED changes to yellow and then to red as the surface temperature reading gets closer to and then equals the calculated dew point reading. Dual lasers indicate ideal measuring distance where the two lasers converge to a 2.5 cm (1 in) target spot. Complete with case and 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Emisividad | 0.95, fixed |
| Humedad relativa | 20 to 80% |
| Localización de objetivo | dual laser |
| Precisión básica de humedad relativa | |
| Punto de condensación | -22 to 212 |
| Relación distancia-objetivo | 12:1 |
| Temperatura (aire) | 32 to 122 |
| Temperatura (aire), precisión básica | |
| Temperatura (aire), resolución máx. | 0.1 |
| Temperatura (IR), precisión básica | -22 to 662 |
| Temperatura (IR), resolución máx. | |
| Temperatura (RTD) | 0.1 |
| Tiempo de respuesta | 150ms |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE, NIST (limited to certain functions) |
| Dimensiones | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| Garantía | 2 years |
| Peso | 5.7oz (163g) |
