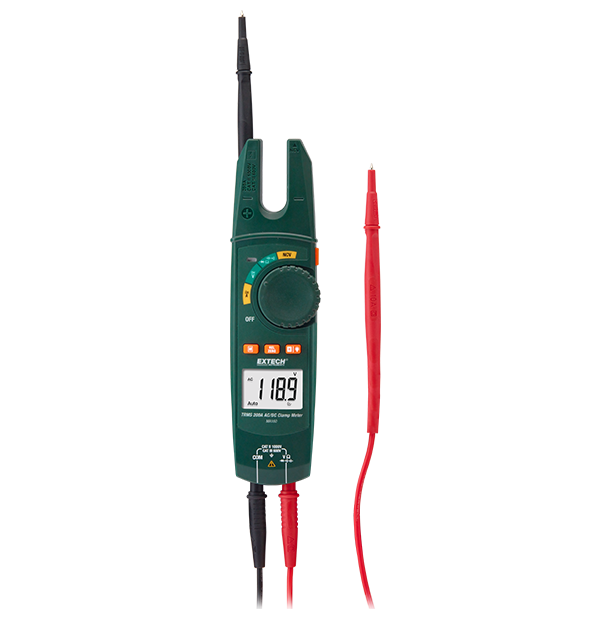

Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter
The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 60mF |
| Capacitancia, resolución máx. | 0.01nF |
| Continuidad | Yes |
| Corriente CA | 200A |
| Corriente CA, resolución máx. | 0.1A |
| Corriente CC | 200A |
| Corriente CC, resolución máx. | 0.1A |
| Detector de voltaje sin contacto (NCV) | 100 to 750V |
| Precisión básica de corriente CA | ±(2.5% of reading + 5 digits) |
| Precisión básica de corriente CD | ±(2.5% of reading + 5 digits) |
| Precisión básica de voltaje CA | ±(2.5% of reading + 3 digits) |
| Precisión básica de voltaje CD | ±(0.8% of reading + 3 digits) |
| Prueba de diodos | Yes |
| Resistencia | 60MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| RMS real | Yes |
| Tamaño de mandíbula | 0.57" (14.5mm) |
| Voltaje CA | 750V |
| Voltaje CA, resolución máx. | 1mV |
| Voltaje CC | 1000V |
| Voltaje CC, resolución máx. | 1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AA (1.5V) batteries |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| Garantía | 2 years |
| Peso | 5.8oz (164g) |
