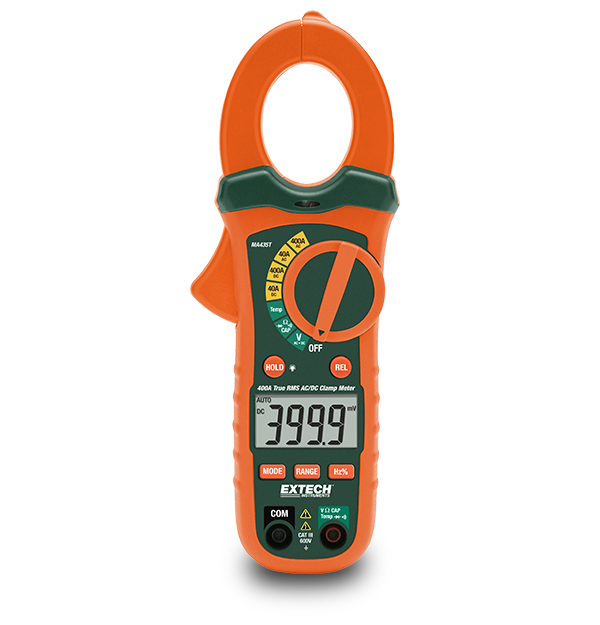

Extech MA435T
400A True RMS AC/DC Clamp Meter + NCV
The Extech MA435T is a compact, 400 A AC Clamp Meter that enables users to take measurements in tight spaces. The 30 mm (1.2 in) jaw opening can accommodate conductors up to 350 MCM. Featuring a large, four digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb dial selector is ergonomically placed for convenient, one-hand operation. It also has True RMS for better accuracy when measuring distorted waveforms. The MA435T’s multimeter functions include AC/DC voltage and current, resistance, capacitance, frequency, diode test, duty cycle, continuity, and thermocouple temperature. Also built into the MA435T is the non contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include data hold, auto power off, and low battery indication. Comes with test leads, 9 V battery, soft carrying case, and user manual.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 100µF |
| Capacitancia, resolución máx. | 0.01nF |
| Continuidad | Yes |
| Corriente CA | 400A |
| Corriente CA, resolución máx. | 0.01A |
| Corriente CC | 400A |
| Corriente CC, resolución máx. | 0.01A |
| Detector de voltaje sin contacto (NCV) | Yes |
| Frecuencia | 10Hz to 10kHz |
| Precisión básica de corriente CA | ±(2.5% of reading + 8 digits) |
| Precisión básica de corriente CD | ±(2.5% of reading + 5 digits) |
| Precisión básica de frecuencia | ±(1.5% of reading + 2 digits) |
| Precisión básica de voltaje CA | ±(1.5% of reading + 5 digits) |
| Precisión básica de voltaje CD | ±(1.5% of reading + 2 digits) |
| Prueba de diodos | Yes |
| Resistencia | 40MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| RMS real | Yes |
| Tamaño de mandíbula | 1.2" (30mm), conductors up to 350MCM |
| Temperatura (tipo K), resolución máx. | -4 to 1400 °F/-20 to 760 °C |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Temperatura (tipo N), precisión básica | 0.1°F/°C |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1mV |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 7.8 × 2.8 × 1.6" (197 × 70 × 40mm) |
| Garantía | 2 years |
| Pantalla | 4000-count segment LCD |
| Peso | 6.5oz (183g) |
