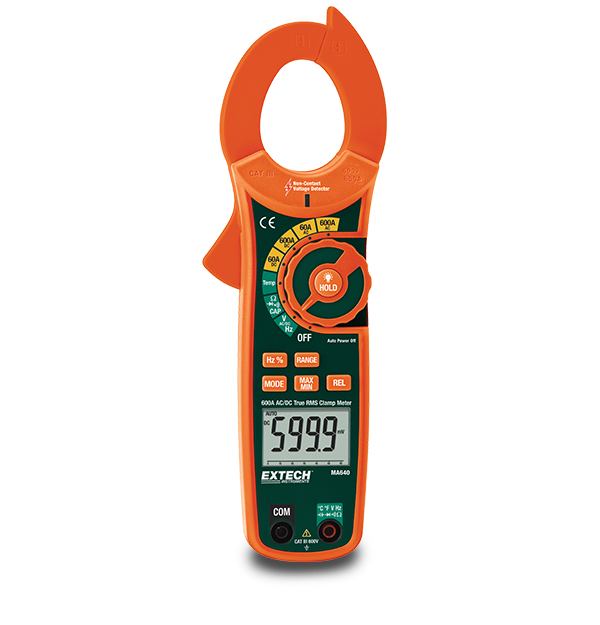

Extech MA640
600A True RMS AC/DC Clamp Meter + NCV
The Extech MA640 600 A True RMS Clamp Meter offers plant maintenance techs, electrical troubleshooters, and DIYers a test instrument that delivers a high level of performance and value. In addition to a host of advanced multimeter and current measurement capabilities, it also features a built in, non contact voltage (NCV) detector. Whether you are performing amp readings in a heavy duty industrial setting or doing commercial electrical work, the 600 A rating, 40 mm (1.5 in) jaw opening can accommodate conductors up to 750 MCM. The illuminated, dual display is useful in poorly lit job sites, and the 4 digit readout is complemented by a bargraph display to simulate an analog one. The heart of the MA640 is an advanced digital multimeter. Its measurement functions cover all types of troubleshooting over and above noninvasive current probe measurements. This includes voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity tests. Even measure temperature with the supplied Type K bead wire probe. Comes with test leads, 9 V battery, carrying case, user manual, and a one year limited warranty on parts and labor.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 40.00nF, 400.0nF, 4.000µF, 40.00µF, 400.0µF, 4000µF |
| Capacitancia, resolución máx. | 0.01nF |
| Ciclo de trabajo | 0.5 to 99.0% |
| Ciclo de trabajo, resolución máx. | 0.10% |
| Continuidad | Yes |
| Corriente CA | 60.00A, 600.0A |
| Corriente CA, resolución máx. | 0.01A |
| Corriente CC | 60.00A, 600.0A |
| Corriente CC, resolución máx. | 0.01A |
| Detector de voltaje sin contacto (NCV) | Yes |
| Frecuencia | 10Hz to 10kHz |
| Frecuencia, resolución máx. | 0.01nF |
| Precisión básica de corriente CA | ±(2.8% of reading + 8 digits) |
| Precisión básica de corriente CD | ±(2.8% of reading + 8 digits) |
| Precisión básica de frecuencia | ±(3.0% of reading + 5 digits) |
| Precisión básica de voltaje CA | ±(1.8% of reading + 8 digits) |
| Precisión básica de voltaje CD | ±(1.5% of reading + 2 digits) |
| Precisión básica del ciclo de trabajo | ±(1.2% of reading + 2 digits) |
| Prueba de diodos | Yes |
| Resistencia | 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Tamaño de mandíbula | 1.5" (40mm), conductors up to 500MCM |
| Temperatura (tipo K), resolución máx. | -4 to 1400 °F (-20 to 760 °C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Temperatura (tipo N), precisión básica | 0.1°F/°C |
| Voltaje CA | 6.000V, 60.00V, 600.0V |
| Voltaje CA, resolución máx. | 0.001V |
| Voltaje CC | 600.0mV, 6.000V, 60.00V, 600.0V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 9.1 × 3 × 1.5" (232 × 77 × 39mm) |
| Garantía | 2 years |
| Pantalla | 6000-count segment LCD |
| Peso | 9.6oz (271g) |
