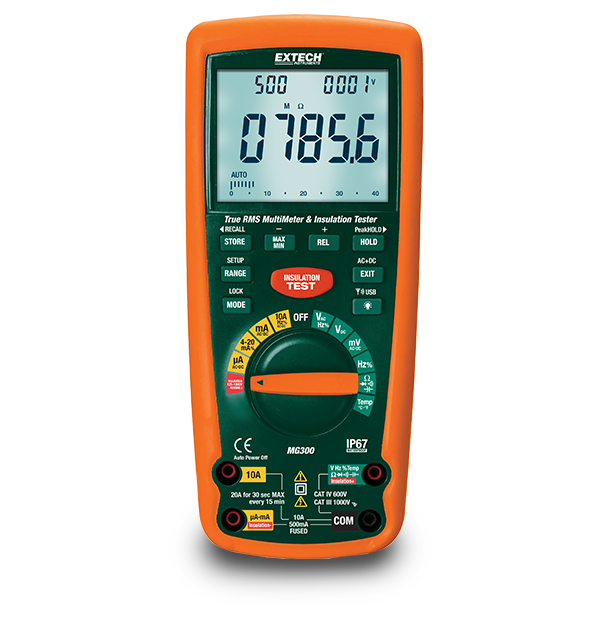

Extech MG300
13 Function Wireless True RMS MultiMeter/Insulation Tester
The Extech MG300 is a True RMS Multimeter with a built in insulation resistance tester that features wireless data streaming for remote monitoring and datalogging. By adding insulation testing capabilities to the ubiquitous digital multimeter, electricians are always equipped for insulation testing. This feature helps make the MG300 a more routine part of predictive maintenance with faster troubleshooting and repairs without additional tools. The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with 4 different test voltages for measuring resistance up to 4G Ω with 0.001 MΩ resolution. Complete with remote receiver with USB cable, windows compatible software, heavy duty test leads, alligator clip test lead, Type K bead wire temperature probe with adapter, carrying case, and 6 AA batteries.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 40mF |
| Capacitancia, resolución máx. | 0.001nF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Ciclo de trabajo, resolución máx. | 0.01 |
| Circuito de corriente (4-20 mA), % | -25 to 125% |
| Circuito de corriente (4-20 mA) porcentual, resolución máx. | 0.01% |
| Continuidad | Yes |
| Corriente CA | 10A |
| Corriente CA, resolución máx. | 0.1µA |
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 0.01µA |
| Frecuencia | 100MHZ |
| Frecuencia de transmisión inalámbrica | 915MHz |
| Frecuencia, resolución máx. | 0.001HZ |
| Precisión básica de corriente CA | ±1.5% |
| Precisión básica de corriente CD | ±1.0% |
| Precisión básica de frecuencia | ±0.1% |
| Precisión básica de resistencia de aislamiento | ±3% |
| Precisión básica de voltaje CA | ±1% |
| Precisión básica de voltaje CD | ±0.06% |
| Precisión básica del ciclo de trabajo | ±1.2% |
| Prueba de diodos | Yes |
| Resistencia | 40MΩ |
| Resistencia de aislamiento | 4MΩ, 40MΩ, 400MΩ, 4000MΩ |
| Resistencia del aislamiento, resolución máx. | 0.001MΩ |
| Resistencia, resolución máx. | 0.01Ω |
| RMS real | Yes |
| Temperatura (tipo K), resolución máx. | -58 to 2192°F (-50 to 1200°C) |
| Temperatura (tipo N) | ±1% + 4.5°F (2.5°C) |
| Temperatura (tipo N), precisión básica | 0.1°F (0.1°C) |
| Voltaje CA | 1000V |
| Voltaje CA, resolución máx. | 0.1mV |
| Voltaje CC | 1000V |
| Voltaje CC, resolución máx. | 0.01mV |
| Voltaje de prueba de aislamiento | 125V, 250V, 500V, 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AA (1.5V) batteries |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, FC, UL |
| Clasificación IP | IP67 |
| Dimensiones | 7.8 × 3.6 × 1.9" (200 × 92 × 50mm) |
| Garantía | 2 years |
| Peso | 20.5oz (582g) |
