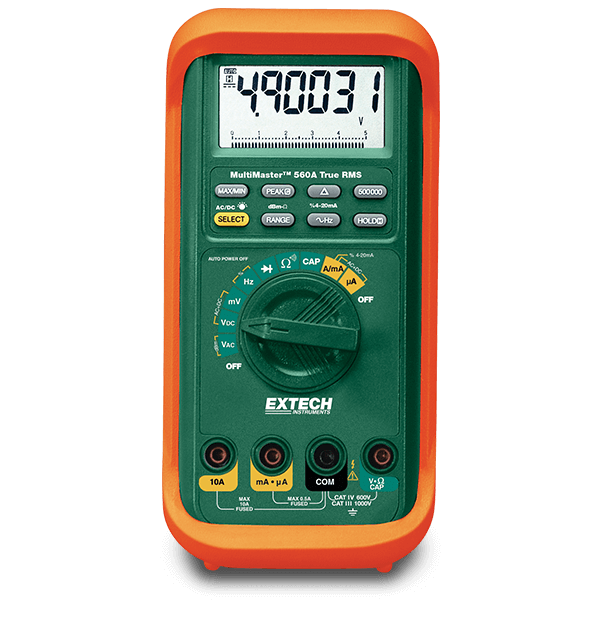

Extech MM560A
MultiMaster® High-Accuracy Multimeter
The Extech MM560A is a MultiMaster® High-Accuracy Multimeter that functions with 0.03% basic DCV accuracy and up to 20 kHz True RMS ACV bandwidth. It measures capacitance, frequency, resistance, continuity, duty cycle, and diode tests with 600 V input protection on all functions. It also has min/max recording with auto ranging, auto power off, relative and hold, and a peak function which captures transient pulses. Optional Windows compatible PC communication software and optically isolated cable. Complete with test leads, protective holster with stand, and 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 50nF to 9999µF |
| Capacitancia, resolución máx. | 0.01nF |
| Ciclo de trabajo | 0.1% to 99.99% |
| Ciclo de trabajo, resolución máx. | 0.01% |
| Corriente CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corriente CA, resolución máx. | 0.01µA |
| Corriente CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corriente CC, resolución máx. | 0.01µA |
| Frecuencia | Electrical: 5Hz to 200kHz, Electronic: 5Hz to 2MHz |
| Frecuencia, resolución máx. | 0.0001Hz |
| Precisión básica de corriente CA | ±(1% + 40 digits) |
| Precisión básica de corriente CD | ±(0.1% + 20 digits) |
| Precisión básica de frecuencia | ±(0.002% + 4 digits) |
| Precisión básica de voltaje CA | ±(0.8% + 60 digits) |
| Precisión básica de voltaje CD | ±(0.03% + 2 digits) |
| Precisión básica del ciclo de trabajo | ±(3 digits/kHz + 2 digits) |
| Resistencia | 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Resistencia, resolución máx. | 0.01Ω |
| RMS real | Yes |
| Voltaje CA | 500mV, 5V, 50V, 500V, 1000V |
| Voltaje CA, resolución máx. | 0.01mV |
| Voltaje CC | 500mV, 5V, 50V, 500V, 1000V |
| Voltaje CC, resolución máx. | 0.01mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantía | 3 years |
| Peso | 0.75lb (340g) |
