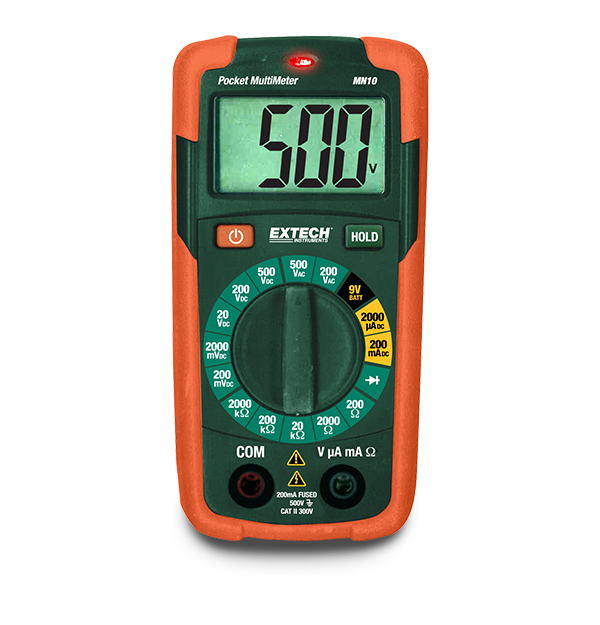

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente CC | 200mA |
| Corriente CC, resolución máx. | 1µA |
| Detector de voltaje sin contacto (NCV) | 100 to 600VAC |
| Precisión básica de corriente CD | ±1.2% |
| Precisión básica de voltaje CA | ±1.2% |
| Precisión básica de voltaje CD | ±0.5% |
| Prueba de batería | 9V |
| Prueba de diodos | Yes |
| Resistencia | 2000kΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Voltaje CA | 500V |
| Voltaje CA, resolución máx. | 0.1V |
| Voltaje CC | 500V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × A23 (12V) battery |
| Categoría de seguridad | CATII - 300V |
| Certificaciones | CE |
| Dimensiones | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Garantía | 1 year |
| Peso | 3.6oz (102g) |
Resources & Support
User Manual
Manual del usuário de Extech MN10
User Manual
Extech MN10 User Manual
Datasheet
Extech MN10 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
