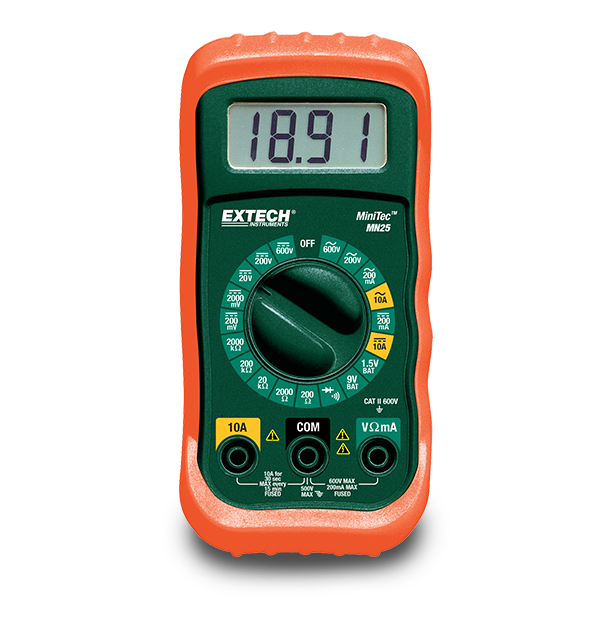

Extech MN25
MiniTec™ Digital MultiMeter
The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
Especificaciones
| Especificaciones generales | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 200 mA, 10 A |
| Corriente CA, resolución máx. | 1 µA |
| Corriente CC | 200 mA, 10 A |
| Corriente CC, resolución máx. | 1 µA |
| Precisión básica de corriente CA | ±1.8% |
| Precisión básica de corriente CD | ±1.2% |
| Precisión básica de voltaje CA | ±1.5% |
| Precisión básica de voltaje CD | ±0.5% |
| Prueba de batería | 9 V, 1.5 V |
| Prueba de diodos | Yes |
| Resistencia | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Resistencia, resolución máx. | 0.1 Ω |
| Voltaje CA | 200 V, 600 V |
| Voltaje CA, resolución máx. | 0.1 V |
| Voltaje CC | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| Voltaje CC, resolución máx. | 0.1 mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATII - 600V |
| Certificaciones | UL |
| Dimensiones | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| Garantía | 1 year |
| Peso | 9.17 oz (260 g) |
Resources & Support
User Manual
Manual del usuário de Extech MN25
User Manual
Extech MN25 User Manual
Datasheet
Extech MN25 Datasheet
