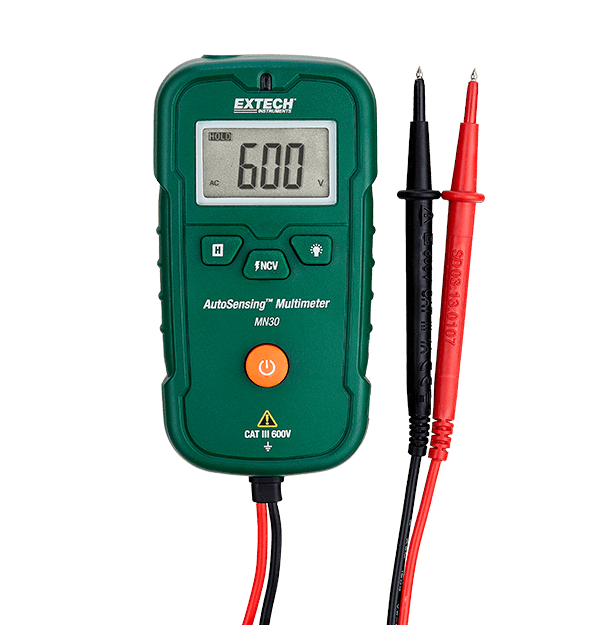

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
Especificaciones
| Especificaciones generales | |
|---|---|
| Continuidad | <30Ω (beeper) |
| Detector de voltaje sin contacto (NCV) | 50 to 600VAC |
| Precisión básica de voltaje CA | ±(1.5% of reading + 3 digits) |
| Precisión básica de voltaje CD | ±(1.5% of reading + 3 digits) |
| Resistencia | 1Ω to 10MΩ |
| Resistencia, resolución máx. | 1Ω |
| RMS real | Yes |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.01V |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.01V |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AAA (1.5V) batteries |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| Garantía | 2 years |
| Peso | 50V to 600V |
Resources & Support
Certification
Extech MN30 Declaration of Conformity
Datasheet
Extech MN30 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
