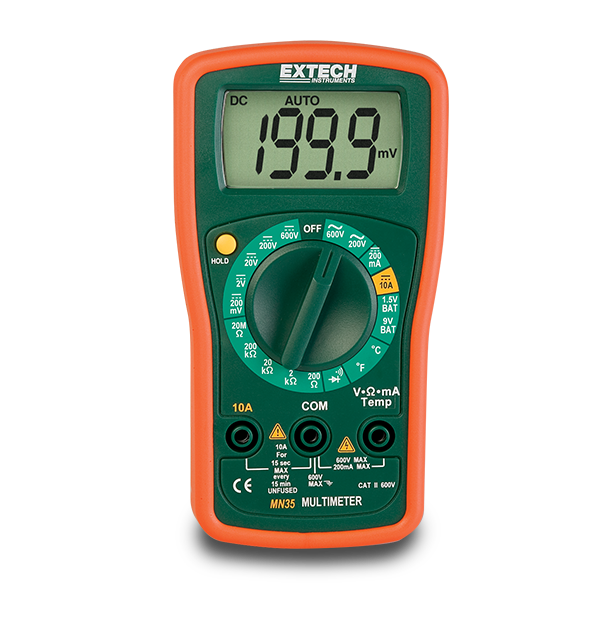

Extech MN35
Minimultímetro digital
El MN35 es un práctico multímetro de tamaño mini con funda protectora de goma y soporte inclinable. Rango manual, que mide el voltaje de CA y CC a 600 V, resistencia con funciones de continuidad y diodo, corriente de CC a 10 A, temperatura y prueba de batería de 9 V/1.5 V. Incluye funda protectora de goma, batería de 9 V, cables de prueba y sonda termopar tipo K.
Especificaciones
| Especificaciones generales | |
|---|---|
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1.2 % |
| AC Voltage Max Resolution | 0.1 V |
| Battery Test | 9 V y 1.5 V |
| DC Current | 10 A |
| DC Current Basic Accuracy | ±1,5 % |
| DC Current Max Resolution | 0.1 mA |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±0.5 % |
| DC Voltage Max Resolution | 0.1 mV |
| Resistance | 20 MΩ |
| Resistance Max Resolution | 0,1µΩ |
| Temperature [Type K] Max Resolution | -4 a 1400 °F (-20 a 750 °C) |
| Temperature [Type N] | ±(1% de la lectura + 4°) |
| Temperature [Type N] Basic Accuracy | 1°F/°C |
| Detalles adicionales | |
|---|---|
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5” (138 × 72 × 38 mm) |
| Power | 1 batería de 9 V |
| Safety Category | CAT II - 600 V |
| Warranty | 2 años |
| Weight | 5.4 oz (153 g) |
