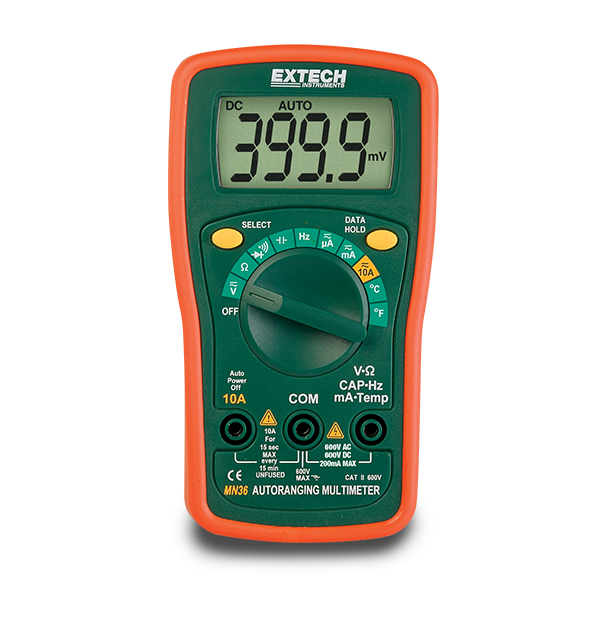

Extech MN36
Minimultímetro digital
El multímetro digital Extech MN36 es compacto, pero viene repleto de funciones. El multímetro MN36 es capaz de medir voltajes de CA y CC de hasta 600 voltios y tiene rango automático, lo que significa que muestra automáticamente las lecturas con la ubicación decimal adecuada y la resolución máxima. Incluye funda protectora de goma, 2 baterías AAA, sonda de temperatura tipo K de alambre de talón y cables de prueba.
Especificaciones
| Especificaciones generales | |
|---|---|
| AC Current | 10 A |
| AC Current Basic Accuracy | ±1,5 % |
| AC Current Max Resolution | 0.1µ A |
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1.2 % |
| AC Voltage Max Resolution | 0.1 V |
| Capacitance | 100 µF |
| Capacitance Max Resolution | 0.001 nF |
| DC Current | 10 A |
| DC Current Basic Accuracy | ±1,2 % |
| DC Current Max Resolution | 0.1µ A |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±0.5 % |
| DC Voltage Max Resolution | 0.1 mV |
| Frequency | 5 MHz |
| Frequency Basic Accuracy | ±1.0 % |
| Frequency Max Resolution | 0.01 Hz |
| Resistance | 40 MΩ |
| Resistance Max Resolution | 0,1µΩ |
| Temperature [Type K] Max Resolution | -4 a 1400 °F (-20 a 750 °C) |
| Temperature [Type N] | ±(1 % de la lectura + 4°) |
| Temperature [Type N] Basic Accuracy | 1 °F/ °C |
| Detalles adicionales | |
|---|---|
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5” (138 × 72 × 38 mm) |
| Power | 2 baterías AAA (1.5 V) |
| Safety Category | CAT II - 600 V |
| Warranty | 2 años |
| Weight | 5.4 oz (153 g) |
Resources & Support
User Manual
Extech MN36 User Manual
Datasheet
Extech MN35-MN36 Datasheet
