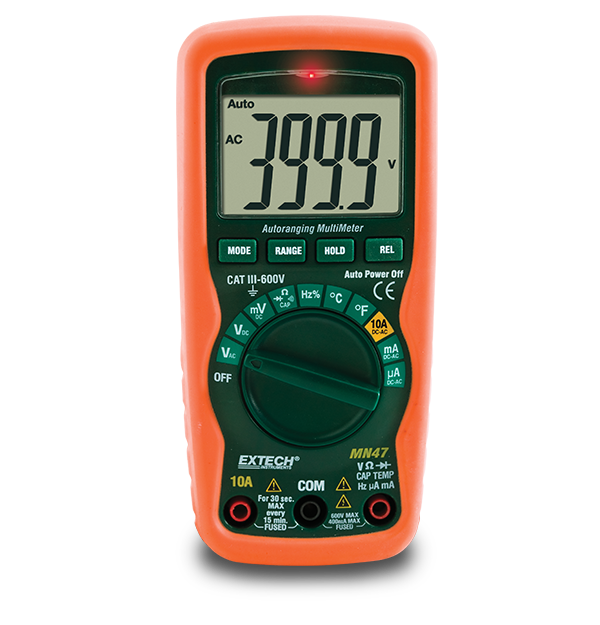

Extech MN47
12 Function Compact MultiMeter + NCV
The compact, manual ranging MN47 digital mini multimeter is equipped with the extensive capabilities for both active tradesman and hobbyist alike. In addition to its electronic and electrical testing functions, the MN47 adds value with a built in, non-contact voltage detector. You won't have to search for a voltage pen in order to safely check for voltage prior to attaching the multimeter's test leads. A bright red LED alerts you to the presence of voltage. Complete with test leads, bead wire Type K probe, 9 V battery, and a carrying case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 100µF |
| Capacitancia, resolución máx. | 1pF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Continuidad | Yes |
| Corriente CA | 10A |
| Corriente CA, resolución máx. | 0.1µA |
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 0.1µA |
| Detector de voltaje sin contacto (NCV) | 100 to 600VAC |
| Frecuencia | 10MHz |
| Frecuencia, resolución máx. | 0.001Hz |
| Prueba de diodos | Yes |
| Resistencia | 40MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Temperatura (tipo K), resolución máx. | 1400 °F (760 °C) |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1V |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Garantía | 2 years |
| Pantalla | 4000-count segment LCD |
| Peso | 9oz (255g) |
Resources & Support
User Manual
Manual del usuário de Extech MN47
User Manual
Extech MN47 User Manual
Certification
Extech MN47 Declaration of Conformity
Datasheet
Extech MN42-MN47 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
