Discontinued

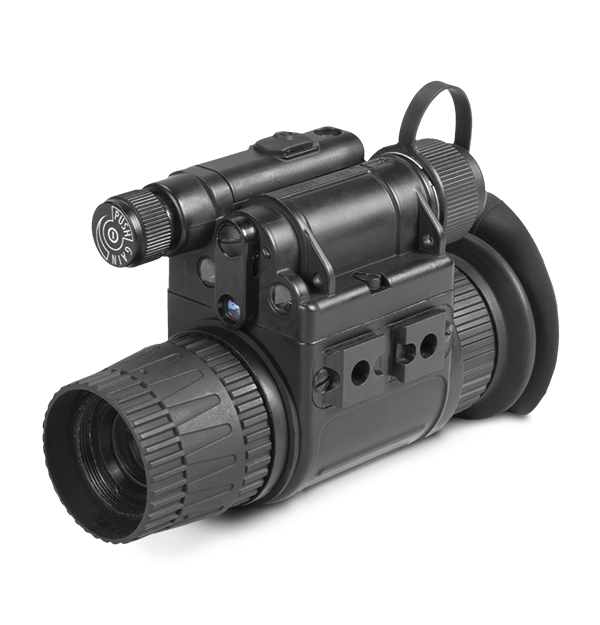

FLIR MNVD-51
51° Multi-Purpose Night Vision Monocular
With a wide 51-degree field of view, the FLIR MNVD-51 offers enhanced situational awareness without moving the optic. Head, helmet, and weapon mounting options allow hands-free operation while a built-in IR illuminator and flood lens improve vision in complete darkness. 40 hours of battery life is possible with a single AA or CR123A battery.
Wide-Angle Night Vision for Complete Awareness
Added hands-free functionality for simple head, helmet, and weapon mounting.
Multi-coated optics and composite housing provide ruggedness and 40-hour runtime with a single AA or CR123A battery allows constant vision.
Wide 51-degree field of view and onboard IR illuminator provides outstanding situational awareness in complete darkness.
Especificaciones
| Highlighted | |
|---|---|
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | -6 to +2 dpt |
| Alivio ocular (mm) | - |
| Aumento | 1x standard (3x, 5x optional) |
| Campo de visión | 51° |
| Control de brillo automático | No |
| Corte_de luz brillante | Yes |
| Diámetro de pupila de salida (mm) | - |
| Generación de IIT | Gen 3 High Performance IIT PINNACLE MG |
| Iluminador de infrarrojos | Detachable Long Range IR and Built-in with pivotal flood lens |
| Rango de enfoque | 0.25 m to Infinity |
| Resolución | - |
| Sistema de lente | F/1.26; 19mm |
| Tipo de fotocátodo | GaAs |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +50°C (-58°F to +122°F) |
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | Yes |
| Duración de la batería | Up to 40 hours |
| Fuente de alimentación | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| Indicador de baja carga de la pila | Yes (In FOV) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | - |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | Yes |
| Indicador de IR | Yes (In FOV) |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (largo × ancho × alto) | 160 x 54 x 79 mm (6.3 x 2.1 x 3.1 in) |
| Montaje en trípode | - |
| Peso del producto | 0.31 kg (0.7 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide |
| Accesorios opcionales | Swing Arm #172, Swing Arm #37, Dual Bridge, Goggle Kit #2, Helmet Mount #4, Dovetail to Weaver Transfer Piece #21, ARMSAIGHT by FLIR Scope Adapter Mount #6, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85, Universal Camera Adapter #45, Camera Adapter #46, Demist Shield #34, Sacrificial Window #30, Shutter Eye-Guard #82, 3x Afocal Lens Kit (for MNVD-51), 5x Afocal Lens (for MNVD-51), 3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), 5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
Accesorios
Recursos y asistencia
Datasheet
MNVD 51 Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
