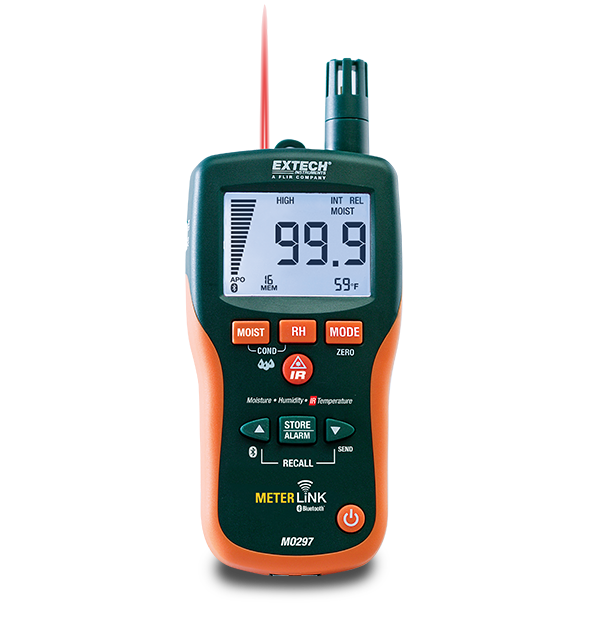

Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™
The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Bluetooth METERLiNK™ | Yes |
| Conectividad inalámbrica | Bluetooth |
| Contenido de humedad relativa (sin pin) | 0 to 99.9 |
| Contenido de humedad relativa, resolución máx. (sin pin) | 0.1 |
| Contenido de humedad WME (con pin) | 0 to 99.9% |
| Contenido de humedad WME, resolución máx. (con pin) | 0.1 |
| Emisividad | 0.95 fixed |
| Humedad relativa | 0 to 100% |
| Memoria | Manually store/recall 20 data readings |
| Precisión básica de contenido de humedad relativa WME (con pin) | ±5% |
| Precisión básica de humedad relativa | ±3% |
| Presión de vapor | 0 to 20.0kPA |
| Profundidad de medición | up to 0.75" (19mm) |
| Punto de condensación | -22 to 199 °F (-30 to 100 °C) |
| Relación distancia-objetivo | 8:1 |
| Temperatura (aire) | -20 to 170 °F (-29 to 77 °C) |
| Temperatura (aire), precisión básica | ±3.6°F (2.0°C) |
| Temperatura (aire), resolución máx. | 0.1°F/°C |
| Temperatura (IR), precisión básica | -4 to 392 °F (-20 to 200 °C) |
| Temperatura (IR), resolución máx. | ±3.5% or ±9°F(4.5°C) whichever greater |
| Temperatura (RTD) | 0.1°F/°C |
| Tipo de sensor | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Vapor de agua | 0 to 999gpp (0 to 160g/kg) |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Garantía | 2 years |
| Peso | 7.4oz (210g) |
Resources & Support
User Manual
Manual del usuário de Extech MO297
User Manual
Extech MO297 User Manual
Datasheet
Extech MO297 Datasheet
Certification
Extech MO297 Declaration of Conformity
