Discontinued

Prometheus

Thermal Imaging Monocular

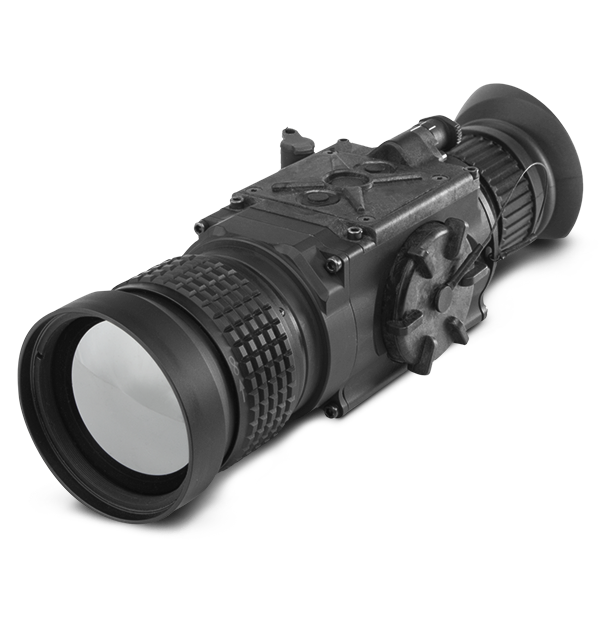

The FLIR Prometheus combines a focusable 50 mm optical lens with the trusted performance of FLIR’s Tau™ 2 thermal imaging core. Designed for mid-range thermal surveillance and capable of refresh rates up to 60 Hz, the Prometheus offers dependable thermal imaging to maintain sightlines on moving objects of interest.

Thermal imaging provides unwavering vision in complete darkness and through glaring light, smoke, and haze.
Prometheus is equipped with a 50 mm manual focus lens to detect humans, animals, and objects from distance.
The feature-packed Prometheus offers a 4x digital zoom and multiple user-controlled color palettes.

Especificaciones

Highlighted
Aumento óptico 3x
Campo de visión 7.8° x 5.9°
Resolución de pantalla 1280 x 960
Sensor y óptica
Ajuste de dioptría Yes
Aumento óptico 3x
Campo de visión 7.8° x 5.9°
Rango de ajuste de dioptría -5 to +5 dpt
Rango de enfoque 5 m to infinity
Resolución 336 x 256
Sistema de lente 50 mm; F/1.0
Tipo de detector 17µm microbolometer
Características medioambientales y aprobaciones
Temperatura operativa -40°C to +50°C (-40°F to +122°F)
Alimentación
Batería Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
Duración de la batería Up to 4 hrs. at 20C°
Almacenamiento de archivos y comunicación
Salida de vídeo PAL (768×574 pixels)/ NTSC (640×480 pixels)
UI-UX
Botones de panel de control Configures Operational Settings: •Display Brightness Control •Image Palette Control • Digital Zoom Control •On-Screen Menu Navigation
Frecuencia de actualización de vídeo 30 Hz
Interruptor de funcionamiento On/ Off/ Standby Mode
Pantalla Quad-VGA
Resolución de pantalla 1280 x 960
Descripción general del sistema
Paletas de colores White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
Peso [lente incl.] 0.55 kg (1.2 lbs.)
Zoom digital 2x, 4x
