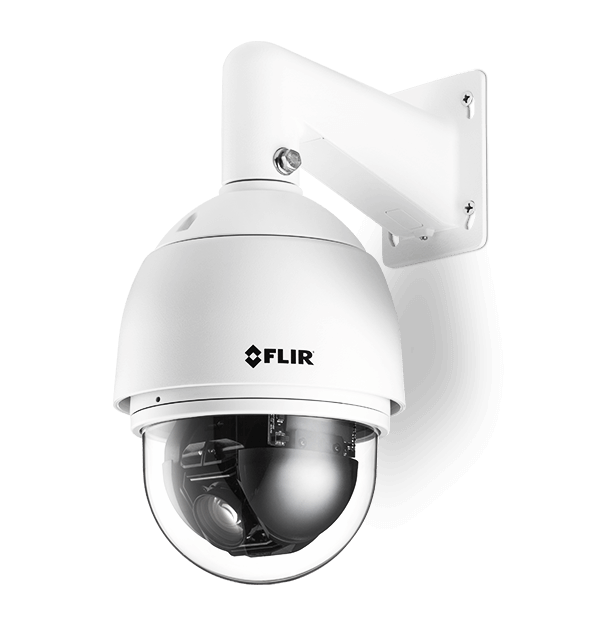

Quasar 1080p PTZ Camera
PTZ Security Camera
The Quasar HD 1080p PTZ security camera produces broadcast-video quality and guaranteed frame rates in high motion, complex and low light scenes, such as airports, urban streets, critical infrastructure, commercial offices and college campuses. The FLIR Quasar CP-4221-30x HD PTZ delivers one of the lowest bandwidths in the industry due to advanced H.264 motion processing.
Especificaciones
| Conformidad y certificaciones | |
|---|---|
| EE. UU. | UL, FCC Part 15 (subpart B, class A) |
| Internacional | CE marked, EN55022-1998 class A, EN55024, RoHS |
| Ciberseguridad | |
|---|---|
| Seguridad | User account and password protection |
| Características medioambientales | |
|---|---|
| Humedad | 95% (non-condensing) |
| Temperatura de almacenamiento | -20° to 70° C (-4° to 158° F) |
| Temperatura operativa | CP-4221-300: 0° to 40° C (32° to 104° F) |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Clasificación de la burbuja | IK10 vandal resistant polycarbonate |
| Clasificación de la carcasa | Tamper resistant surface mount or IK10 rated vandal IP66 outdoor housing |
| Conexión de alimentación | Terminal block |
| Consumo de energía | Max 20W indoor (CP-4221-300), Max 60W outdoor (CP-3221-301) with heater operating |
| Control del AGC | Auto / Manual |
| Detección de manipulación | On / Of |
| Dimensiones | CP-4221-300: 171.7 x 228.71 mm (6.76 x 9 in.) |
| Día/noche: filtro de corte de IR | Auto / Manual |
| Garantía | According to FLIR RMA Policy and Process Notice document |
| Modo de escaneo | Progressive |
| Parada F de burbuja | F0.0 - clear bubble |
| Peso de la unidad | CP-4221-300: 1.62 Kg (3.57 lbs.) |
| Reanudar tras pérdida de alimentación | Yes |
| Reducción de ruido 3D | On / Of |
| Voltaje de entrada | PoE++ 802.3at 60W (indoor/outdoor), PoE+ 802.3at 25W (indoor only), AC 24V ±10% |
| Zonas de privacidad | On / Off - 16 zones |
| Medición y análisis | |
|---|---|
| Resolución máxima | 1920x1080 (HD 1080p) |
| PTZ | |
|---|---|
| Función de inicio | Preset / Sequence / Auto Pan / Pattern |
| Panorámica automática | 4.0 |
| Panorámica e inclinación proporcionales | On / Off (pan and tilt speed proportional to zoom ratio) |
| Patrón | 8.0 |
| Precisión preestablecida | 0.225° |
| Recorrido de inclinación | -10° to 190° |
| Recorrido de panorámica | 360° continuous |
| Secuencia | 8.0 |
| Valores preestablecidos | 256.0 |
| Velocidad manual | 0.13° to 90° / sec |
| Velocidad máxima de panorámica/inclinación | 400° / sec |
| Velocidad preestablecida | 5° to 400° / sec |
| Volteo automático | Digital / Mechanical / Off |
| Ángulos de visualización horizontales | 65.3° (Wide) to 2.2° (Tele) |
| Integración de sistema | |
|---|---|
| Alarma | Input: 4 dry alarm contact Output: 2 relay contact, 30 VDC at 2A or 125 VAC at 0.5A max |
| Ancho de banda de audio | Configurable between 16 kbps & 64 Kbps (depending on compression method) |
| Audio bidireccional | Full duplex, line / mic in and line out, G.711, G.726 |
| Conexiones de audio | Terminal block |
| Configuración | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Navegador web compatible | Internet Explorer 6.0+ |
| Protocolo de red | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, IEEE 802.1X, QoS,ONVIF Profile S |
| Reacción de alarma | Preset / Sequence / Auto Pan / Pattern |
| Cámara térmica | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Estabilización de imagen | On / Of |
| Iluminación mínima | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Longitud focal | 4.3 to 129 mm |
| Sensor de imagen | 1/2.8" CMOS |
| Zoom digital | 1 to 12 variable |
| Zoom óptico | 30x |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Balance de blancos | Auto / Indoor / Outdoor / ATW / Manual |
| Compensación de retroiluminación | On / Of |
| Control de iris | Auto / Manual |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Estabilización de imagen | On / Of |
| Iluminación mínima | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| Longitud focal | 4.3 to 129 mm |
| Modo de enfoque | Auto / Manual |
| Rango dinámico amplio (multiobturador) | On / Of |
| Relación de señal y ruido | ±50 dB |
| Resolución del sensor | 1920 x 1080 |
| Rotación de la imagen | Normal / Flip / Mirror |
| Sensor de imagen | 1/2.8" CMOS |
| Zoom digital | 1 to 12 variable |
| Zoom óptico | 30x |
| Vídeo y grabación | |
|---|---|
| Ancho de banda de vídeo | Configurable between 64 Kbps and 8 Mbps |
| Compresión de vídeo | Dual Streaming H.264 / H.264 or H.264 / MJPEG |
| Control de frecuencia | CBR / VBR |
| Detección de movimiento en vídeo | On / Off - up to 10 independent zones |
| Grabación en tarjeta SD | SDXC up to 64 GByte |
| Rango de resolución | Scalable from CIF to HD 1080p |
| Rendimiento máximo | 30fps @ HD 1080p + 30fps @ D1 or 15+15 @ HD 1080p |
