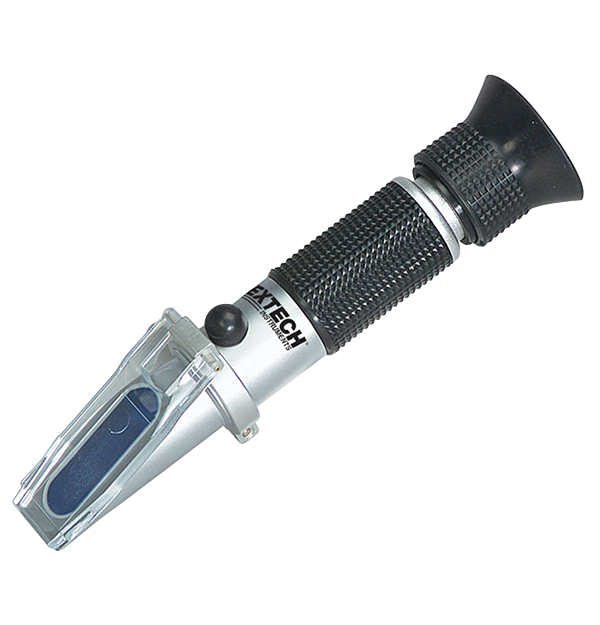

Extech RF41
Portable Battery Coolant/Glycol Refractometer with ATC (°C)
The Extech RF41 measures propylene/ethylene glycol freezing points from -50°C to 0°C. It also measures the specific gravity of battery acid from 1.11 to 1.30 and provides a quick reference of battery charge condition. Requires only 2 or 3 drops of solution for fast and accurate readings. The automatic temperature compensation provides repeatable measurements on an easy to read scale. Prism and lens come with a simple focus adjustment. Includes carrying case and calibration screwdriver.
Especificaciones
| Especificaciones generales | |
|---|---|
| Gravedad específica de ácido de batería | 1.15 to 1.30 |
| Gravedad específica máxima del ácido de la batería, resolución máx. | 0.01 |
| Punto de congelación (etilenglicol) | -50 to 0°C (10°C to 30°C ATC) |
| Punto de congelación (etilenglicol), precisión básica | ±2% |
| Punto de congelación (etilenglicol), resolución máx. | 1°C |
| Punto de congelación (propilenglicol) | -50 to 0°C (10°C to 30°C ATC) |
| Punto de congelación (propilenglicol), precisión básica | ±2% |
| Punto de congelación (propilenglicol), resolución máx. | 1°C |
| Detalles adicionales | |
|---|---|
| Dimensiones | 6.5 × 1.5 × 1.5" (165 × 38 × 38mm) |
| Garantía | 2 years |
| Peso | 7oz (200g) |
Resources & Support
User Manual
Manual del usuário de Extech RF41
User Manual
Extech RF41 User Manual
Datasheet
Extech RFxx Datasheet
