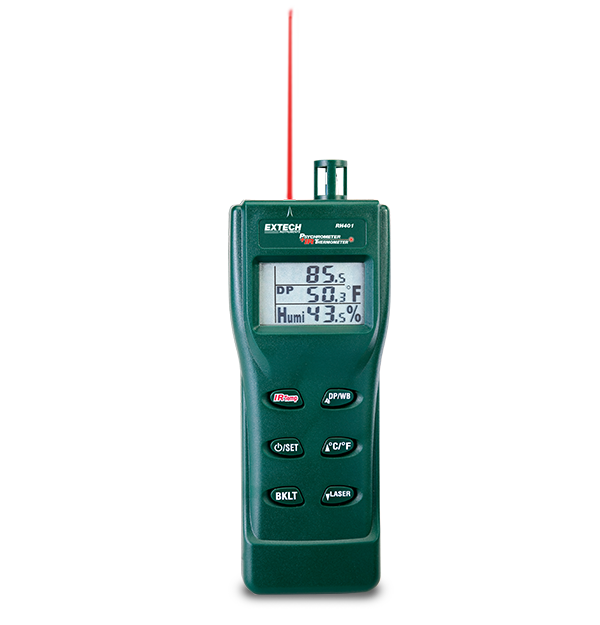

Extech RH401
Digital Psychrometer + InfraRed Thermometer
The Extech RH401 is a Digital Psychrometer with a built in IR Thermometer that allows for quick, non contact surface temperature measurements. It displays air temperature, humidity, surface temperature or dew point, and wet bulb, all on a triple LCD with backlighting. The IR thermometer features adjustable emissivity and a spot to distance ratio of 8:1. The meter calculates temperature difference between IR surface temperature and dew point. Other features include data hold, programmable auto power off, and a retractable probe that protects the sensors when the meter is not in use. Includes hard case and four AAA batteries.
Especificaciones
| Especificaciones generales | |
|---|---|
| Bulbo húmedo | -6.9 to 122 °F (-21.6 to 49.9 °C) |
| Bulbo húmedo, resolución máx. | 0.1 ° |
| Humedad relativa | 10 to 90% |
| Precisión básica de humedad relativa | ±3% |
| Punto de condensación | -90.4 to 122 °F (-68.0 to 49.9 °C) |
| Resolución máxima de humedad relativa | 0.1% |
| Resolución máxima de punto de rocío | 0.1 ° |
| Temperatura (aire) | -4 to 122 °F (-20 to 50 °C) |
| Temperatura (aire), precisión básica | ±1.8 °F/ ±1 °C |
| Temperatura (aire), resolución máx. | 0.1° |
| Temperatura (IR), precisión básica | -328 to 2498 °F (-200 to 1370 °C) |
| Temperatura (IR), resolución máx. | ±0.3% or ±1.8 °F/ ±1 °C |
| Temperatura (RTD) | 0.1° |
| Detalles adicionales | |
|---|---|
| Alimentación | 4 × AAA (1.5V) batteries |
| Dimensiones | 9 × 2.2 × 1.7" (230 × 57 × 44mm) |
| Garantía | 2 years |
| Peso | 5.3oz (153g) |
