Discontinued

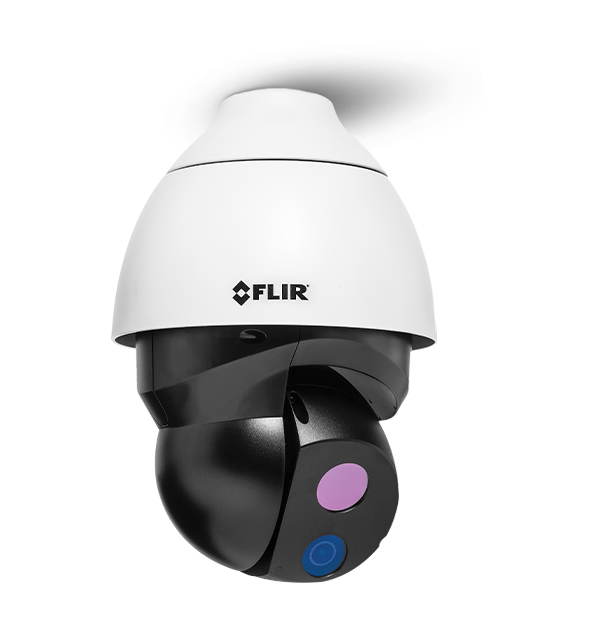

Saros DM-Series
Multispectral PTZ Thermal Camera
Product Variations
The FLIR Saros DM-Series introduces eight new VGA and QVGA resolution options to FLIR’s multi-sensor security lineup. Capable of capturing video in complete darkness, bright sunlight, and through smoke, dust, or light fog, the DM-Series provides superior perimeter protection in the toughest lighting and environmental conditions. A built-in 4K visible light camera operates alongside the thermal sensor to capture minute details in low light conditions. The DM-Series also integrates with the FLIR United Video Management System (UVMS), as well as other ONVIF-compliant video management systems. This gives users complete control over the all new dual-sensor viewing mode, alarm functions, and fully programmable preset tour.
Superior thermal image quality and a built-in 4K visible camera offer versatile multi-spectral surveillance.
Choose from a wide range of lenses along with VGA and QVGA sensors for optimal detection ranges in challenging conditions.
The DM-Series is engineered to reduce exposure to remote security attacks.
Specifications
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FCC Part 15 (Subpart B, Class A) CE Marked RoHS IP66 ONVIF Profile S WEEE (Waste Electrical and Electronic Equipment Directive) IEC 62368 |
| Environmental | |
|---|---|
| Humidity | 10 – 90% relative |
| IP Rating [dust and water ingress] | IP66 |
| Operating Temperature Range | -40°C – 55°C cold start |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -40°C – 85°C |
| Vibe | IEC 60068-2-64 |
| General | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Focus Range | Athermalized, Focus-Free |
| Input Voltage | 24 VAC, Universal PoE Injector |
| Power Consumption | 12VDC, 2.5A, 30W 24VAC, 2.36A, 57VA 55VDC (PoE), 0.62A, 34W |
| Measurement & Analysis | |
|---|---|
| Programmable Presets | 256 |
| PTZ | |
|---|---|
| Pan Angle | Continuous 360° |
| Tilt Angle | -10° – 190° |
| System Integration | |
|---|---|
| Ethernet | Yes |
| Network APIs | FLIR SDK, FLIR CGI, ONVIF Profile S |
| Streaming Resolutions | Thermal: QVGA to VGA Visible: VGA to 4K |
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
| Thermal Camera | |
|---|---|
| Array format | 320 × 256 |
| Optical Characteristics | FOV (H x W): 92° x 69° Focal Length: 2.3 mm |
| Pixel Pitch | 12 µm |
| Spectral Range | 7.5 µm to 13.5 µm |
| Thermal Frame Rate | NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz |
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast |
| Visible Camera | |
|---|---|
| Array format | 320 × 256 |
| Sensitivity | Color: 0.25 Lux @(f1.6 AGC On, 30FPS) B/W: 0.10 Lux @ (f1.6 AGC On, 30FPS) |
| Spectral Range | 7.5 µm to 13.5 µm |
| Video & Recording | |
|---|---|
| Video Compression | Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
Accessories
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
FLIR Elara DX-Series, Saros DM-Series, Quasar 4K IR PTZ Firmware Version 1.7.0.20
Software Download
FLIR DNA Software - Version 2.3.0.35
Quick Start Guide
DM-Series Quick Install Guide
Datasheet
Saros DM Series Datasheet
Datasheet
Saros DM Series Datasheet A4
User Manual
FLIR Saros DM-Series Installation and User Guide
AE Spec
DM-Series A&E Specifications
Firmware Release Note
FLIR Elara DX-Series, Saros DM-Series, Quasar 4K IR PTZ Firmware Release Notes v1.7.0.20
Configuration Guide
FLIR Security PTZ Pairing Guide for DX-Series, DM-Series, and Quasar 4K PTZ Cameras
Warranty
FLIR Fixed and Motorized Pan Tilt Thermal Security Cameras Limited Warranty
Compatibility
FLIR Security Cameras & Encoders - Supported 3rd Party Platforms
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
