Extech SDL550
Humidity Content Meter/Datalogger

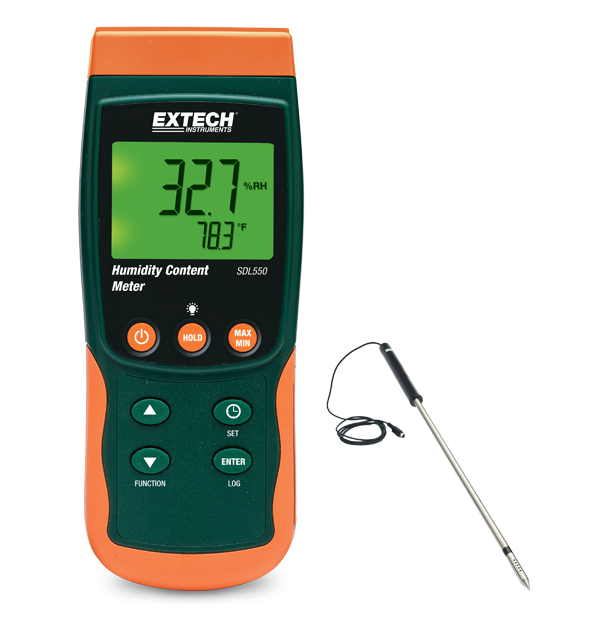

The Extech SDL550 Humidity Content Meter/Datalogger monitors moisture in many different materials like grain, corn, rice, cotton, or paper. The 600 mm (23.7 in) heavy duty stainless steel probe with a replaceable probe head and inner filter measures moisture content from 10% to 95%, temperature, and dew point. The datalogger date/time stamps and stores readings on an SD card in Excel™ format for easy transfer to a PC. It has an adjustable data sampling rate from 1 sec to 3600 sec, and it stores 99 readings manually plus 20 M readings via 2G SD card. Other features include a large backlit dual LCD display on which you can use functions such as record, recall, min/max, data hold, and auto power off. Complete with 1.5 m (4.9 ft) cable, sensor cap, SD card, 9 V battery, and soft carrying case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Humedad relativa | 10 to 95% |
| Memoria | 20M data records using 2G SD card |
| Precisión básica de humedad relativa | ±3% |
| Punto de condensación | -13 to 120 °F (-25 to 50 °C) |
| Resolución máxima de humedad relativa | 0.1% |
| Resolución máxima de punto de rocío | 0.1° |
| Temperatura (aire) | 32 to 122 °F (0 to 50 °C) |
| Temperatura (aire), precisión básica | ±1.8 °F/1 °C |
| Temperatura (aire), resolución máx. | 0.1° |
| Temperatura (tipo J), precisión básica | -148 to 2192 °F (-100 to 1200 °C) |
| Temperatura (tipo K), precisión básica | 0.2% + 1.8 °F/1 °C |
| Temperatura (tipo K), resolución máx. | -148 to 2372 °F (-100 to 1300 °C) |
| Temperatura (tipo N), precisión básica | 0.2% + 1.8 °F/1 °C |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Garantía | 3 years |
| Peso | 8.6oz (245g) |
Resources & Support
User Manual
Manual del usuário de Extech SDL550
Datasheet
Extech SDL550 Datasheet
Certification
Extech SDL550 Declaration of Conformity
User Manual
Extech SDL550 User Manual
