Discontinued

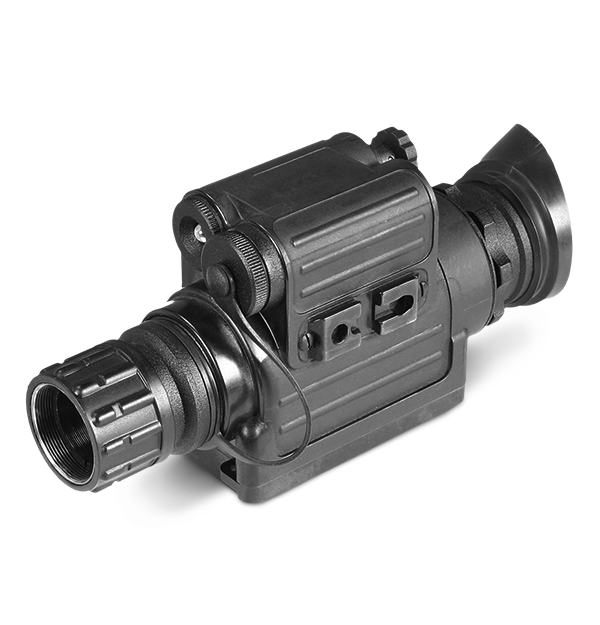

FLIR Spark
Night Vision Monocular
The FLIR Spark is a compact night vision monocular for enhancing awareness in minimal light conditions. A rugged composite housing and built-in IR illuminator allow Spark to capture sharp imagery in challenging weather conditions or complete darkness. Optional 3x and 5x optical zoom lenses and detachable high-power IR illuminator are available for long-range wildlife viewing.
Classic, Compact Night Vision
Rugged CORE intensifier tube and onboard IR illuminator allow continuous surveillance in tough conditions.
Head, helmet, and weapon mounting options allow simple handsfree operation.
Detachable optical magnification lenses and XLR IR illuminator boost long-range performance.
Especificaciones
| Highlighted | |
|---|---|
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | ±5 diopter |
| Alivio ocular (mm) | 20 mm |
| Aumento | 1x standard (3x, 5x optional) |
| Campo de visión | 35° |
| Control de brillo automático | No |
| Corte_de luz brillante | No |
| Diámetro de pupila de salida (mm) | 8 mm |
| Generación de IIT | CORE |
| Iluminador de infrarrojos | Yes |
| Rango de enfoque | 0.25 m to Infinity |
| Resolución | 60-70 lp/mm |
| Sistema de lente | F/1.7; 35 mm |
| Tipo de fotocátodo | N/A |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | No |
| Duración de la batería | Up to 40 hours |
| Fuente de alimentación | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | - |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | No |
| Indicador de IR | Yes (Led) |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (largo × ancho × alto) | 181× 49 × 82 mm (7.1 × 1.9 × 3.2 in) |
| Montaje en trípode | - |
| Peso del producto | 0.37 kg (0.8 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card |
| Accesorios opcionales | PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85 |
