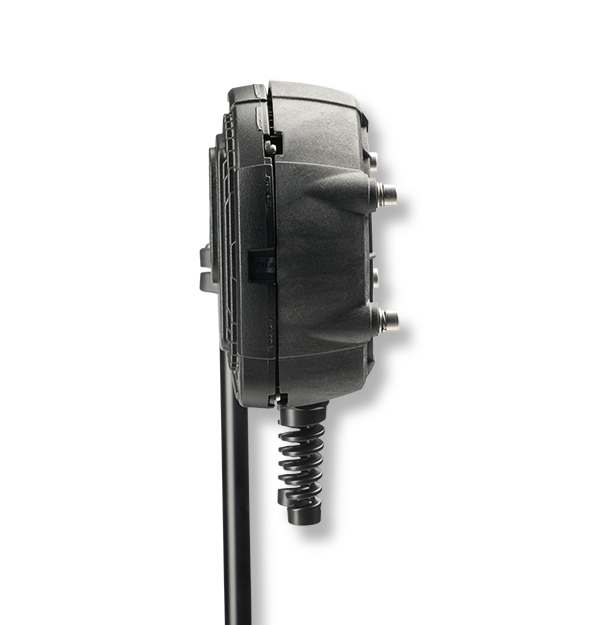

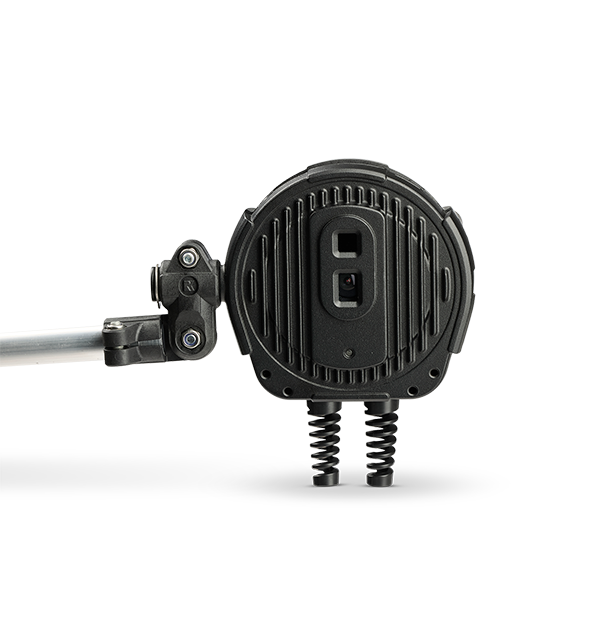

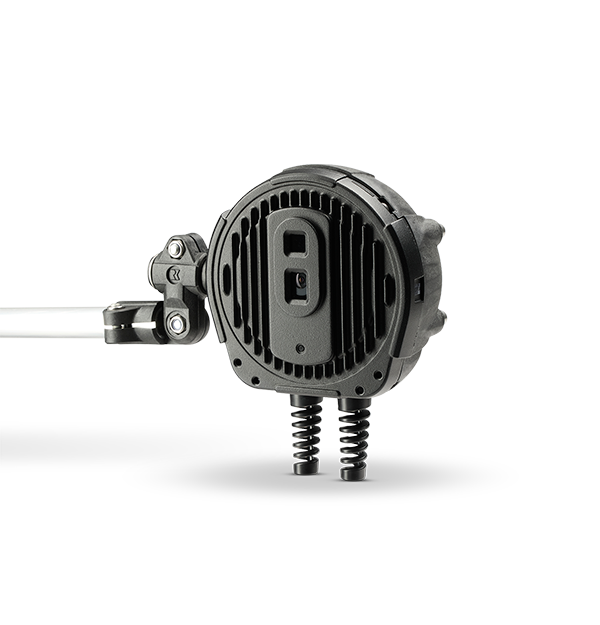

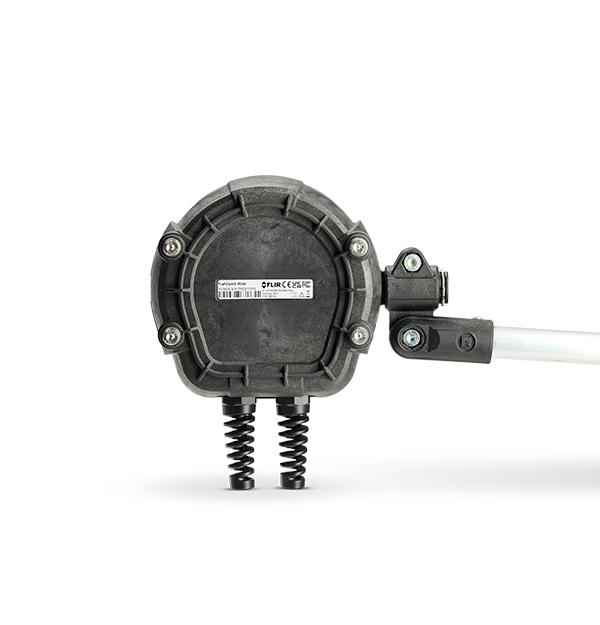

TrafiCam™ 3
Smart City Sensor
Product Variations
FLIR TrafiCam 3 is an affordable, all-round detection sensor for traffic monitoring and dynamic traffic signal control. This rugged, compact uses visual imaging and Wi-Fi technology to adapt traffic signals based on the presence detection of traffic objects vehicles while also generating basic count data at intersections and in urban environments. Key to helping traffic engineers improve vehicle flows, monitor congestion, and enhance safety, TrafiCam 3 ensures cities can collect accurate road data as well as measure travel and delay times for different transport modes.
Monitors MAC addresses of Wi-Fi-enabled devices such as smartphones to determine rates of travel along road segments.
Generates basic count data at intersections and in urban environments, in any environmental conditions.
Mounts quickly and integrates with existing platforms through BPL technology or PoE connection.
Especificaciones
| Descripción general del sistema | |
|---|---|
| Detection Functionalities | Presencia de vehículos |
| Detection Zones | 8 zonas de presencia de vehículos |
| Comunicaciones | |
|---|---|
| Compression | H.264, MPEG-4, MJPEG |
| Configuration | Página web a través de Wi-Fi seguro o Ethernet |
| Ethernet | 10/100 MBps PoE A y PoE B |
| Output | 1 contacto seco N/O y 1 contacto seco N/C dirigen 16 contactos secos N/C a través de TI BPL3, TI SLT o 4 N/C a través de BPL3 Edge B&SIU integrado + máximo 5x N/C a través de tarjetas de expansión USB de 4I/S (máx. total de 24 salidas) SDLC: BIU-64 o SUI-128 |
| WiFi | IEEE 802.11 tipo b,g,n EIRP <100 mW |
| Electricidad | |
|---|---|
| Detection Distance | TrafiCam3 Ancho: 0–25 m (0–85 pies) TrafiCam3 Estrecho: 15–75 m (50–250 pies) |
| FCC | FCC parte 15 clase A |
| Input Power | 12 – 42 V CA 12 – 48 V CC |
| Power Consumption | Promedio 6,2 W, pico 7 W, pico con PowerDip 14 W |
| Powerline Communication | A través de la interfaz TI BPL3 o TI BPL3 EDGE |
| Características medioambientales | |
|---|---|
| EU Directives | EMC 2014/30/UE, RoHS 2011/65/UE |
| IP Rating | IP67 |
| Operating Temperature | -40 °C a 74 °C (de -40 °F a 165 °F) |
| Shock and Vibration | Especificaciones de NEMA TS2 |
| Generación de imágenes y óptica | |
|---|---|
| Frame Rate | 15 fps |
| Resolution | 640 × 480 píxeles, color CMOS |
| Streaming Video | RTSP |
| Mecánica | |
|---|---|
| Bracket | Pinzas de montaje PA GF30 y tubo de aluminio |
| Dimensions [incl mounting bracket] | 70 × 200 × 440 mm (2,75 × 7,87 × 17,32") |
| Installation Height | TrafiCam3 Ancho: 3,5–6 m (11,4–19,6 pies) TrafiCam3 Estrecho: 5,5–8 m (18,0–26,0 pies) |
| Material | Carcasa de aluminio con parasol PC GF10; resistente a los rayos UV |
| Weight | 850 g / 1,87 lb (cámara con soporte) |
