Boîtier IP67 pour série Axxx (T912366)
Boîtier de protection pour les modèles Flir A400/A500/A700
$4,850.00

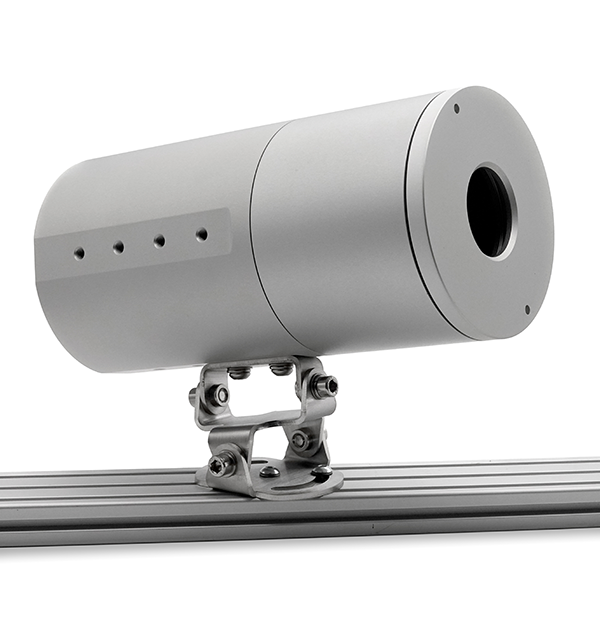

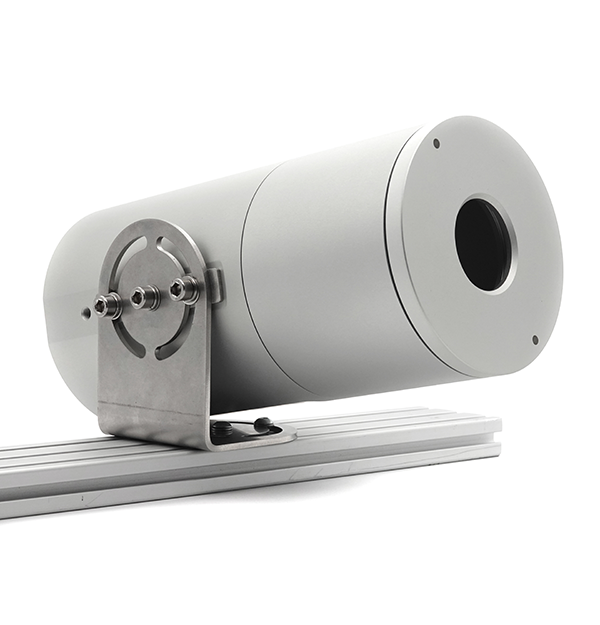

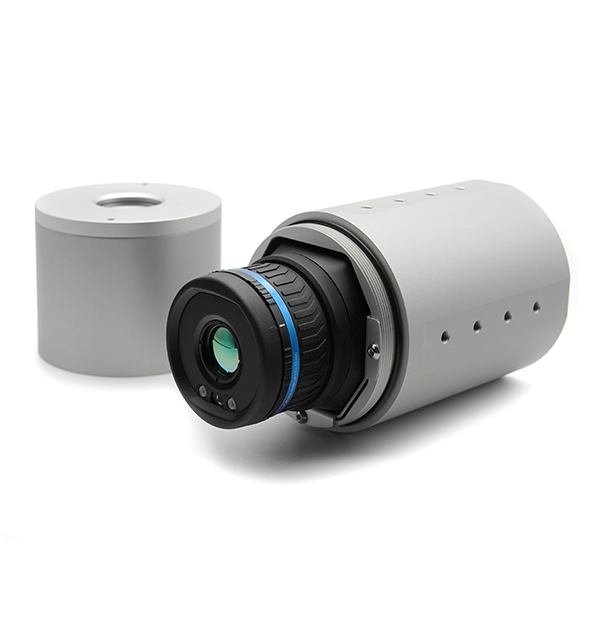

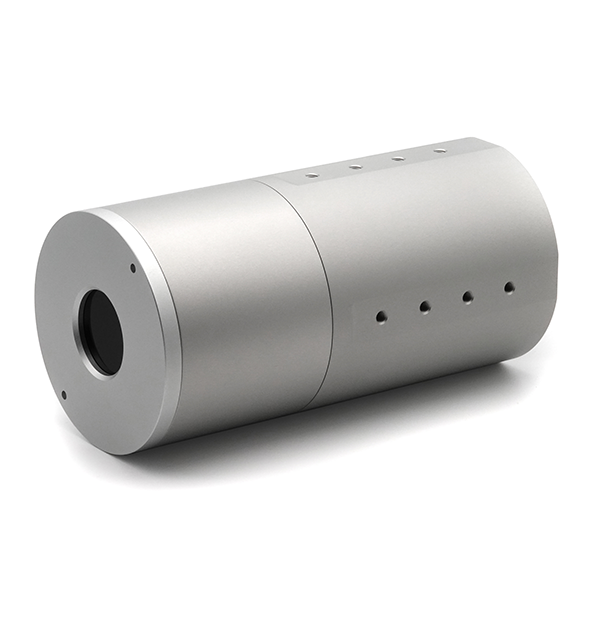

Ce boîtier de protection en aluminium classé IP67-rated est spécialement conçu pour la série Flir Axxx. La précision de la caméra à l’intérieur du boîtier de protection reste conforme aux spécifications standard en raison des formules radiométriques exclusives de Flir. Les accessoires compatibles comprennent un bloc/une veste de refroidissement, un écran solaire et de nombreuses options de montage.
Remarque : La fenêtre en germanium bloque la caméra visuelle.
The window, upgraded
A better window. The same part number.
The IP67 housings now ship with a chalcogenide-glass IR window—equivalent optics, the same hardened coating, and a supply chain you can schedule around.
Equivalent optics, verified
88–90% transmission across the 7–14 µm band, with radiometric accuracy unchanged. Confirmed in testing against the germanium reference window.
Stable as temperatures climb
A low thermo-optic coefficient keeps optical properties consistent—the same material class automotive thermal cameras qualify from -40°C to 85°C (-40°F to 185°F).
Hardened like before
The same AR + DLC diamond-like-carbon coating as the previous window, meeting MIL-spec abrasion, humidity, and salt-spray standards.
Supply you can plan on
Moves the window off constrained germanium supply—protecting availability and the delivery dates behind your camera order.
Beat the Heat
One housing platform. Ambient operation to 90°C.
Start with the housing alone, then add cooling jackets and blocks as conditions demand—the same camera keeps working as ambient climbs.
Extended Operation with Cooling
Ambient temperature → housing configuration (IP67 aluminum)
| -20°C to 50°C (-4°F to 122°F) | Housing as-is | No cooling accessories required |
| 50°C to 55°C (122°F to 131°F) | 1 cooling jacket | Jacket fitted on one side |
| 55°C to 60°C (131°F to 140°F) | 1 jacket + air | Air-fed jacket on one side |
| 60°C to 70°C (140°F to 158°F) | 2 jackets + air | Air-fed jackets, both sides |
| 70°C to 90°C (158°F to 194°F) | 4 blocks + air | Air-fed cooling on every side |
Accessoires
Ressources et assistance
Datasheet
Fiche technique du boîtier FLIR Axx IP67/IP69k CA
Datasheet
Fiche technique du boîtier FLIR Axx IP67/IP69k
Datasheet
FLIR Axx IP67/IP69k Housing Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
