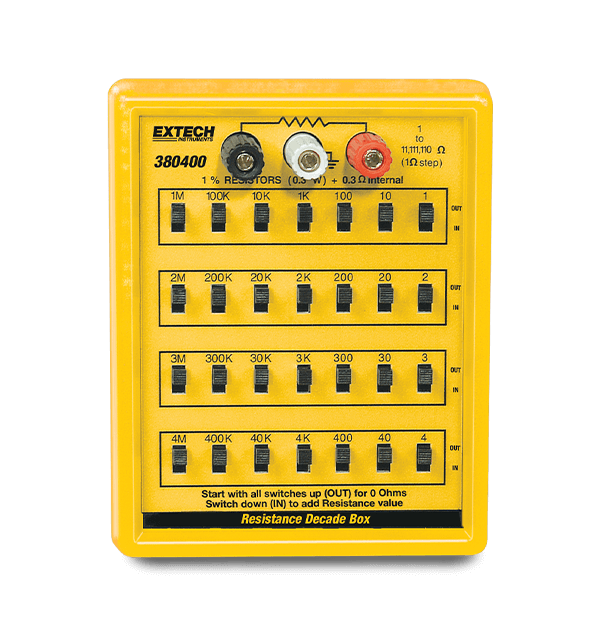

Extech 380400
Resistance Decade Box
Product Variations
The Extech 380400 Resistance Decade Box is very popular for product design testing and calibration because it can be substituted into a circuit and function in the place of any component with a standard value easily. Alternatively, it can be used to identify the best value for circuit operation then read that value from the switches. Then, a resistor of the size indicated by the decade box switches can be put into the circuit.
Specifiche
| General | |
|---|---|
| Internal Resistance | 0.3Ω |
| Resistance | 1 to 11,111,110Ω in 1Ω steps |
| Additional Details | |
|---|---|
| Connector(s) | Three (3) binding posts |
| Dimensions | 5.79 × 4.61 × 1.3" (147 × 117 × 33mm) |
| Power | 0.3W Resistors |
| Warranty | 2 years |
| Weight | 0.69lb (312g) |
