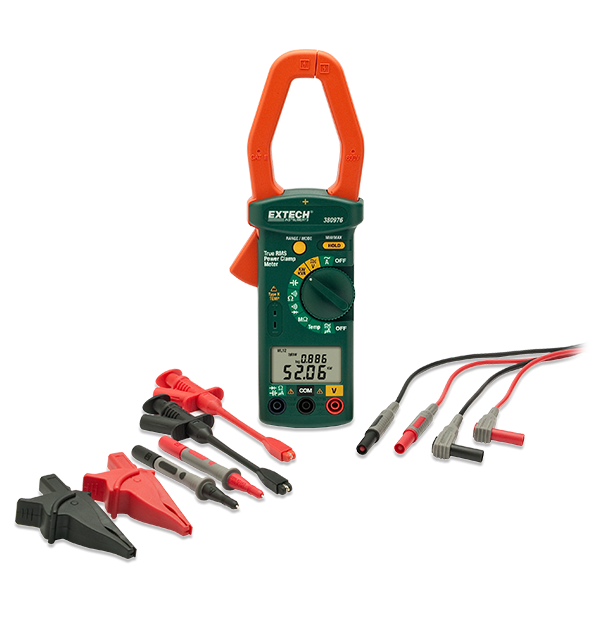

Extech 380976-K
Ein-/dreiphasiges 1000-Ampere-AC-Stromzangen-Messgeräte-Kit
Beim Modell 380976-K handelt es sich um ein ein-/dreiphasiges 1.000-Ampere-AC-Stromzangen-Messgeräte-Kit. Misst 1-/3-phasige Wirkleistung (kW), Scheinleistung (kVA), Blindleistung (kVAR), Pferdestärken (PS), Leistungsfaktor und Phasenwinkel mit Lead/Lag-Indikator Gleich-/Wechselspannungsmessungen mit automatischer Erkennung und simultaner Frequenzanzeige Darüber hinaus enthält das mitgelieferte Messleitungs-Kit zwei 72"-Messleitungen der Kategorie IV, zwei modulare Messsondengriffe, zwei kolbenaktivierte Backenklemmen und zwei extragroße Krokodilklemmen. Inklusive Messleitungen, universellem Messfühler (Typ K), Tasche und 9-V-Batterie.
Specifications
| Allgemeine technische Daten | |
|---|---|
| AC Current | 1000A |
| AC Current Basic Accuracy | ±2 % |
| AC Current Max Resolution | 10 mA |
| AC Microcurrent | 1000µA |
| AC Microcurrent Basic Accuracy | ±1 % |
| AC Microcurrent Max Resolution | 10 nA |
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1 % |
| AC Voltage Max Resolution | 0,1 mV |
| Apparent Power | 600 kVA |
| Apparent Power Basic Accuracy | ±2 % |
| Apparent Power Max Resolution | 100 VA |
| Capacitance | 7.00µ0 F |
| Capacitance Max Resolution | 1 nF |
| DC Microcurrent | 1000µA |
| DC Microcurrent Basic Accuracy | ±1 % |
| DC Microcurrent Max Resolution | 10 nA |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±1 % |
| DC Voltage Max Resolution | 0,1 mV |
| Frequency | 40 Hz bis 1 kHz |
| Frequency Basic Accuracy | ±0,5 % |
| Frequency Max Resolution | 0,1 Hz |
| Horsepower | 800 PS |
| Horsepower Basic Accuracy | ±5 % |
| Horsepower Max Resolution | 0,01 PS |
| Low Resistance | 1.000.000 Ω |
| Low Resistance Basic Accuracy | ±1 % |
| Low Resistance Max Resolution | 0,1Ω |
| Phase | -60 bis +60° |
| Phase Basic Accuracy | ±6° |
| Phase Max Resolution | 0,1° |
| Reactive Power | 600 kVAR |
| Reactive Power Basic Accuracy | ±5 % |
| Reactive Power Max Resolution | 10 VAR |
| Resistance | 100 mΩ |
| Resistance Max Resolution | 1 kΩ |
| Temperature [Type K] Max Resolution | -50 bis 900°C (-58 bis 1000°F) |
| Temperature [Type N] | ±1 % |
| Temperature [Type N] Basic Accuracy | 0,1 °F/°C |
| True Power | 600 kW / 10 W |
| True Power Basic Accuracy | ±5 % |
| True Power Max Resolution | 10 W |
| Weitere Details | |
|---|---|
| Certifications | 380976-K-NIST_S: CE,UL, NIST 380976-K_S: CE, UL |
| Dimensions | 228 × 76 × 39 mm |
| Power | 1 9-V-Batterie |
| Safety Category | CAT III – 600 V |
| Warranty | 2 Jahre |
| Weight | 465 g |
