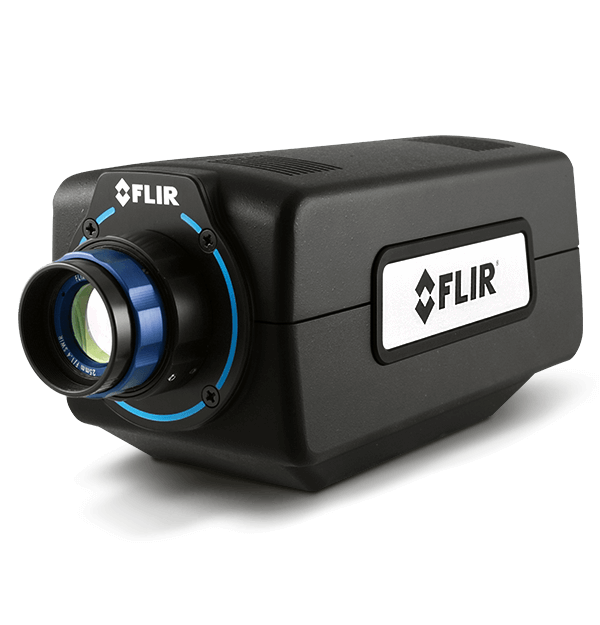

FLIR A6260

SWIR Camera with InGaAs Detector

The FLIR A6260 SWIR camera offers superior sensitivity and dynamic range paired with the flexibility of customized windowing and integration times. This InGaAs camera is very linear in the 0.9 to 1.7 µm sensing waveband, making it the perfect tool for high temperature thermal measurements and applications that require measuring through standard glass. The A6260 offers control over settings such as integration time, while allowing you to synchronize and trigger to external events and devices.

Advanced SWIR Imaging For R&D Applications
The 327,680 (640 x 512) pixel detector offers three user-selectable, 75x factor gain states for imaging bright and low-light scenes.
Tailor controls to unique applications through customizable integration times, frame rates, synchronization, and triggering.
Factory or user-calibrate the A6260 to measure temperatures above 400°C when optimized for the 0.6 - 1.7 µm waveband.

Accessori

  1. FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
  1. FLIR A-Series Camera Auxiliary Breakout Cable Assembly (29402-500)
  1. FLIR Cooled Science X-Series + A-Series Camera Power Supply (4227599)
  1. IR Lens, SWIR, 35 mm (4142571)
  2. IR Lens, SWIR, 25 mm (4142572)
  3. IR Lens, SWIR, 16 mm (4142573)
