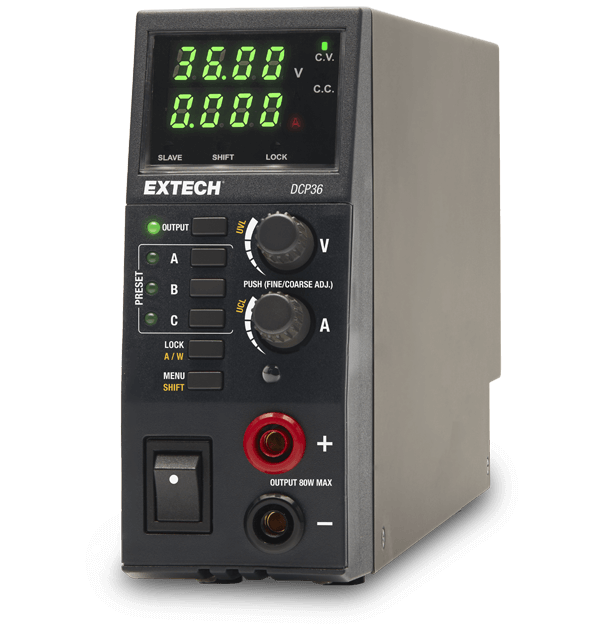

Extech DCP36
80W Switching Mode DC Power Supply
Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
Specifiche
| General | |
|---|---|
| Line Current Regulation | ≤10mA |
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W) |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage | 0.5 to 36V |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35m Vp-p |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 13 × 5 × 2" (330 × 127 × 53.5 mm) |
| Warranty | 2 years |
| Weight | 4.2 lbs (1.9 kg) |
