Discontinued

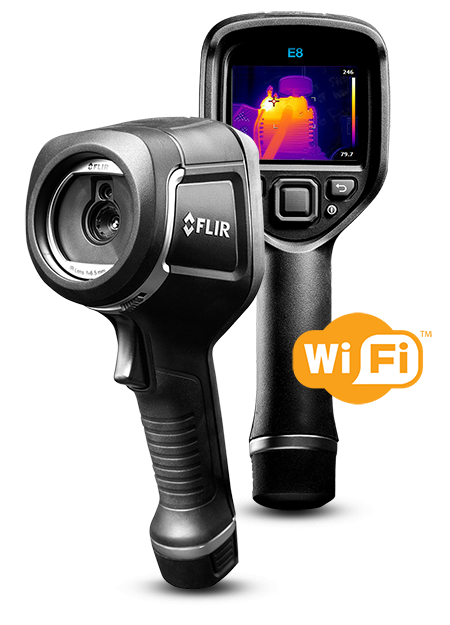

FLIR E8 WiFI
Infrared Camera with MSX® & WiFi
The FLIR E8 with WiFi offers affordable, high-resolution thermal imaging with the added advantage of wireless connectivity. Find hidden electrical faults, mechanical issues, and sources of energy loss thanks to the E8's crisp 76,800 (320 × 240) pixel infrared resolution and MSX® image enhancements. Then, streamline your workload by uploading and sharing images and data over WiFi to the FLIR Tools mobile app.
Best-in-class Thermal Troubleshooting Value
Upload images and data to the FLIR Tools app over WiFi, for instant sharing and reporting.
With its outstanding 76,800 pixel detector and ±2% accuracy, the E8 offers best-in-class image clarity.
A focus-free lens and simple button navigation to on-screen settings makes this camera easy to operate.
Specifiche
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <0.06°C (0.11°F) / <60 mK |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Field of view (FOV) | 45° × 34° |
| Image Modes | Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera |
| Display | 3.0 in. 320 × 240 color LCD |
| Imaging & Optical | |
|---|---|
| Color Palettes | Black & white, iron, and rainbow |
| Detector Type | Uncooled microbolometer |
| Field of view (FOV) | 45° × 34° |
| FLIR Screen-EST Mode | No |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Image Modes | Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera |
| IR Resolution | 320 × 240 pixels |
| Minimum Focus Distance | 0.5 m (1.6 ft.) |
| Multi Spectral Dynamic Imaging (MSX) | IR image enhanced with visible camera detail |
| Picture-in-Picture | IR area on visual image |
| Thermal Sensitivity/NETD | <0.06°C (0.11°F) / <60 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Accuracy [Drift] in Screen-EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
| Camera weight incl battery | 0.575 kg (1.27 lb.) |
| Object Temperature Range | –20°C to 250°C (–4°F to 482°F) |
| Sampling Average in Screen-EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Spot Meter | Center spot; box with min./max. |
| User Interface | |
|---|---|
| Display | 3.0 in. 320 × 240 color LCD |
| Communication & Data Storage | |
|---|---|
| File Formats | Standard JPEG, 14-bit measurement data included |
| Interface | USB Micro: Data transfer to and from PC and Mac device |
| WiFi | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
| General | |
|---|---|
| Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
