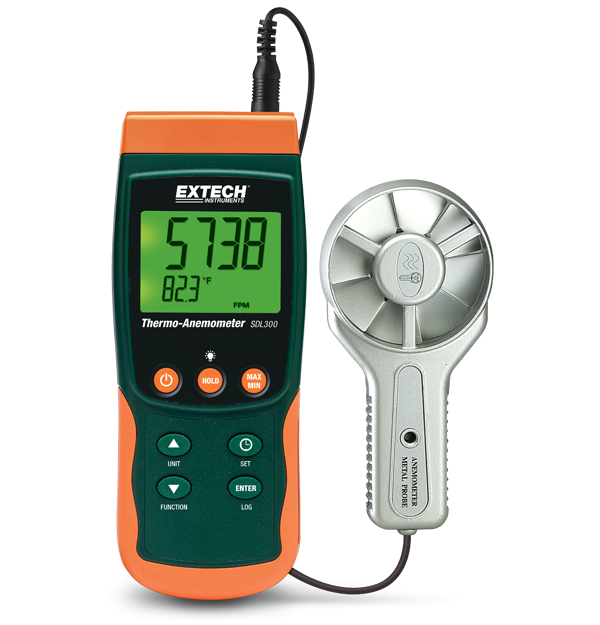

The SDL300 records data on an SD card in Excel format. Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Adjustable data sampling rate from 1 to 3600 seconds. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements. Large (9999 count) LCD displays Air Velocity and Temperature simultaneously. 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable. Record/Recall MIN, MAX, Data Hold, Auto Power Off. Complete with 6 x AA batteries, SD card, metal vane sensor with 3.9ft (120cm) cable, and hard carrying case.
Specifiche
| General | |
|---|---|
| Air Velocity (ft/min) | 100 to 3940ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±3% |
| Air Velocity (m/s) | 0.5 to 20m/s |
| Air Velocity (m/s) Basic Accuracy | ±3% |
| Air Volume (CFM) | 0 to 99999 CFM |
| Air Volume (CFM) Max Resolution | 0.1 CFM |
| Air Volume (CMM) | 0 to 99999 CMM |
| Air Volume (CMM) Max Resolution | 0.1 CMM |
| Dew Point | -4 to 140 °F (-20 to 60 °C) |
| Relative Humidity | 0.1 to 99.9% |
| Relative Humidity Basic Accuracy | ±3% |
| Temperature (Air) | -4 to 140 °F (-20 to 60 °C) |
| Temperature (Air) Basic Accuracy | ±1.1°F (0.6°C) |
| Wet Bulb | -4 to 140 °F (-20 to 60 °C) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.7 × 3 × 1.7" (169 × 78.3 × 44.4mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 7.4oz (210g) |
