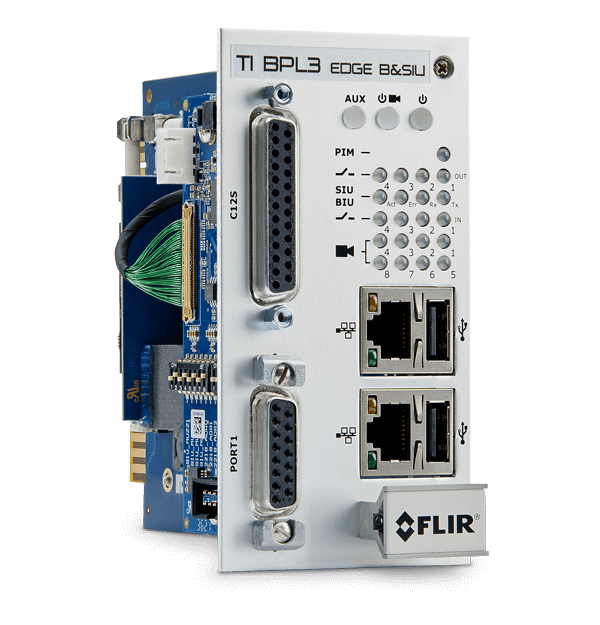

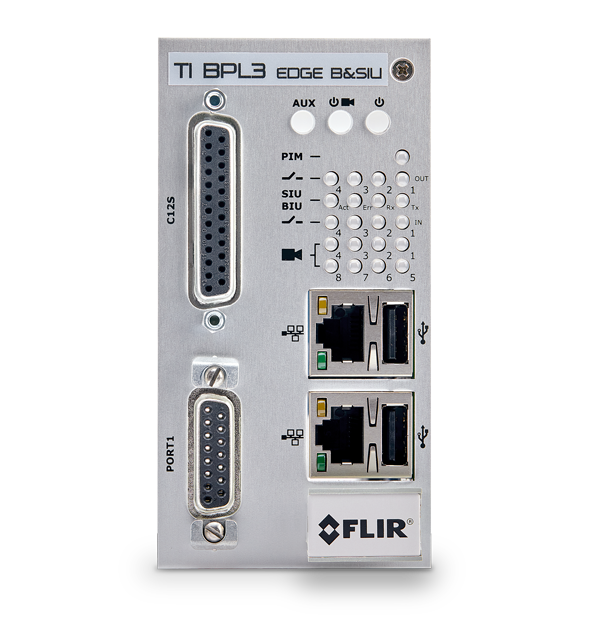

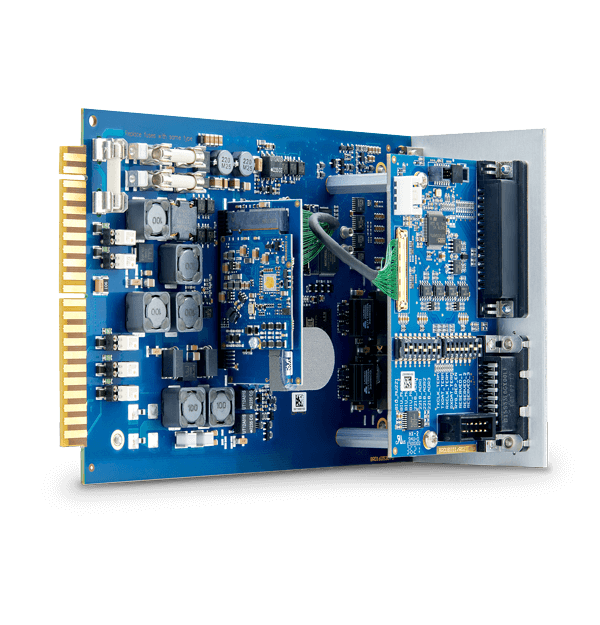

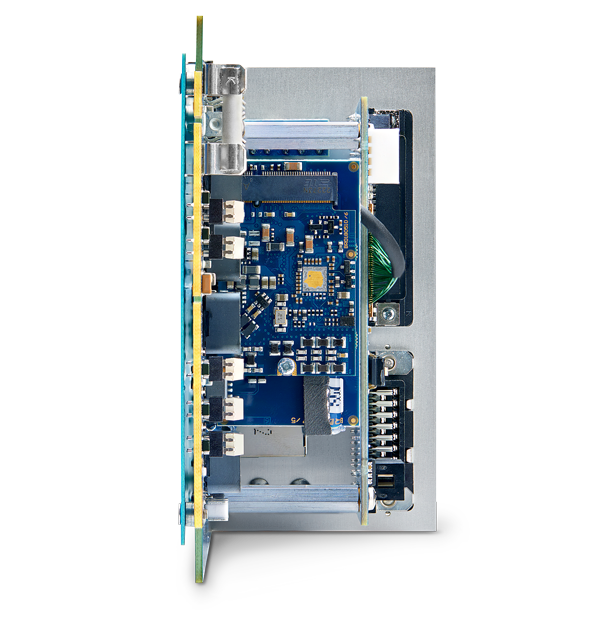

TI BPL3 EDGE B and SIU INTERFACE
3rd Generation Broadband Over Power Line Edge Interface
Verbindet Zonenausgänge von BPL3-Sensoren und/oder Power Line (PL)-Sensoren mit einer Steuerung und liefert Strom und Kommunikation an BPL3-Sensoren und/oder PL-Sensoren. Die Edge-Schnittstelle leitet RYG-Informationen an die Sensorüberlagerung weiter und verbindet den PC mit BPL3-Sensoren und/oder PL-Sensoren zur Systemkonfiguration und -anzeige. Kompatibel mit dem/den folgenden BPL3-Sensor(en): TrafiSense KI, TrafiCam KI. Auch kompatibel mit dem TrafiOne PL Sensor. Empfohlen werden maximal vier BPL3/PL-Sensoren.
Specifications
| Kommunikation | |
|---|---|
| Connector | Cable BPL3/PL Sensor – Interface: 3 × wires via clamps (back): 2 × wires for DC power & communication: broadband over power line (BPL) and 1 × wire for functional earth Interface Mounting: EDGE-rack mountable |
| Ethernet | 2 × RJ45 Ethernet connectors (10/100 Mbit/s auto switching) |
| Input | 4 × input contacts via EDGE connector (back, pins 1, 2, 3, 10) 4 × input LEDs (front, green) Note: maximum 20 extra detection outputs can be added via maximum five 4 I/O USB units |
| Output | Detection Outputs: 64 × BIU output states via Port-1 connector at front (SDLC) to TS-2/ATC controller 128 × SIU output states via C12S connector at front (SDLC) to ATC controller 4 × optical coupled dry contacts via EDGE connector (back, pins F/H, W/X, S/T, Y/Z) to TS-1 controller Imax = 50 mA, Umax = 48 V DC Close on event or open on event (setting in software) 4 × output LEDs (front, green) Detection output 1 to 4 and common detection output 1 to 4 Error Outputs: 1 × optical isolated switch component via EDGE connector (back, pins J/K) - Imax = 50 mA, Umax = 48 V DC Open on event (hardware output) 8 × BPL3/PL sensor status LEDs (front, bicolor green/red) Error output and common error output Function of Error Output: Error output active = error in TI BPL3 EDGE B&SIU or power supply down, or Error output active = error in 4 I/O USB with output(s) assigned (e.g. no communications), or Error output active = error in corresponding BPL3/PL sensor (e.g. no communications) |
| Elektrik | |
|---|---|
| Power | Power IN: 12 V DC to 60 V DC, via EDGE connector (back, pins A/B, polarity sensitive), power button and LED (front, bicolor green/red) Separate 24 V DC to 48 V DC via EDGE connector (back, pins D/E) for BPL3/PL sensors Note: 48 V DC on pins D/E recommended when multiple BPL3/PL sensors and/or long cable distances Power OUT: Idem power IN, via EDGE connector (back, pins P/R, polarity insensitive) Note: BPL3 communications to BPL3/PL sensors added at interface level Power Consumption: Interface only: typical ≤5 W (6 W peak at start-up) Maximum, interface with periphery: <100 W @ 24 V DC Current Consumption: Interface only: typical ≤210 mA @ 24 V DC Maximum, interface with periphery: <4 A @ 24 V DC |
| Umgebungsfaktoren | |
|---|---|
| Operating Temperature Range | NEMA II specs: -34°C to 74°C (-29.2°F to 165.2°F) |
| Mechanik | |
|---|---|
| Dimensions | H × W × D: 115 mm × 59 mm × 191 mm (4.53 in × 2.32 in × 7.52 in) Standard US EDGE rack height & depth; width = double slot |
| Weight | 450 g (1 lb) |
