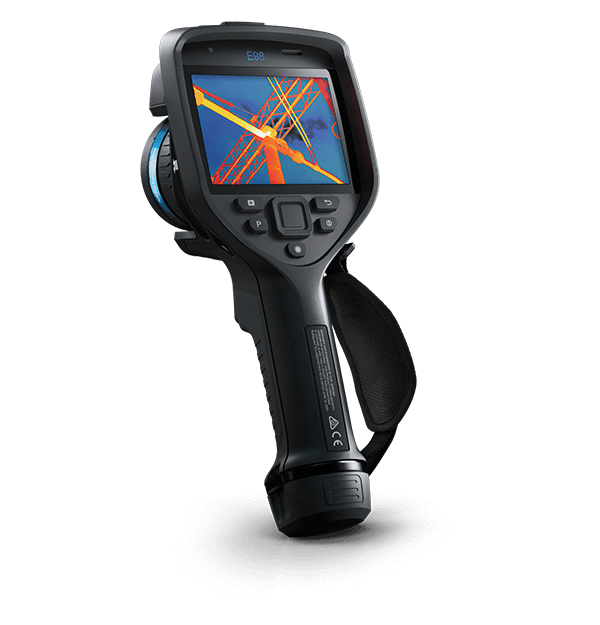

FLIR E98

Advanced Thermal Imaging Camera

The FLIR E98 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations. For a limited time, the purchase of an E98 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

Enhanced Resolution, Faster Inspections
The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Onboard integration with FLIR routing software*, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday.

Specifications

Highlighted
IR Resolution 640 × 480 pixels
Thermal Sensitivity_NETD FLIR E96 14°: <50 mK at 30°C (86°F)
FLIR E96 24°: <40 mK at 30°C (86°F)
FLIR E96 42°: <30 mK at 30°C (86°F)
FLIR E96 24° + 14°: <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
FLIR E96 24° + 42°: <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
FLIR E96 24°, 14° + 42°: <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
FLIR E96 42° + 14°: <30 mK, 42° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
Accuracy ±2°C (±3.6°F) or ±2% of the reading
Digital Camera 5 MP, with built-in LED photo/video lamp
Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Imaging & Optical
Color palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch Uncooled microbolometer, 12 µm
Digital Camera 5 MP, with built-in LED photo/video lamp
Digital Zoom 1-8× continuous
f number FLIR E96 14°: 1.5
FLIR E96 24°: 1.3
FLIR E96 42°: 1.1
FLIR E96 24° + 14°: 1.3, 24°
1.5, 14°
FLIR E96 24° + 42°: 1.1, 42°
1.3, 24°
FLIR E96 24°, 14° + 42°: 1.1, 42°
1.3, 24°
1.5, 14°
FLIR E96 42° + 14°: 1.1, 42°
1.5, 14°
Focus Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency 30 Hz
IR Resolution 640 × 480 pixels
Lens Identification Automatic
Minimum Focus Distance 0.15 m, 42°
0.15 m, 24°
1.0 m, 14°
Non_radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture_in_Picture Resizable and movable
Radiometric IR video recording Real-time radiometric recording (.csq)
Radiometric IR video streaming Yes, over UVC
Spectral Range 7.5-14 µm
Thermal Sensitivity_NETD FLIR E96 14°: <50 mK at 30°C (86°F)
FLIR E96 24°: <40 mK at 30°C (86°F)
FLIR E96 42°: <30 mK at 30°C (86°F)
FLIR E96 24° + 14°: <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
FLIR E96 24° + 42°: <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
FLIR E96 24°, 14° + 42°: <30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
FLIR E96 42° + 14°: <30 mK, 42° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
UltraMax Yes
Viewfinder No
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of the reading
Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
Spot Meter 3 ea. in live mode
User Interface
Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text Predefined list or touchscreen keyboard
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
Battery operating time >2.5 hours at 25°C (68°F) and typical use
Battery Type Rechargeable Li-ion battery
Environmental & Certifications
Operating Temperature Range -15 to 50°C (5 to 122°F)
Safety EN/UL/CSA/PSE 60950-1
Storage Temperature Range -40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route Enabled in camera
Laser Pointer Yes
Packaging Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
