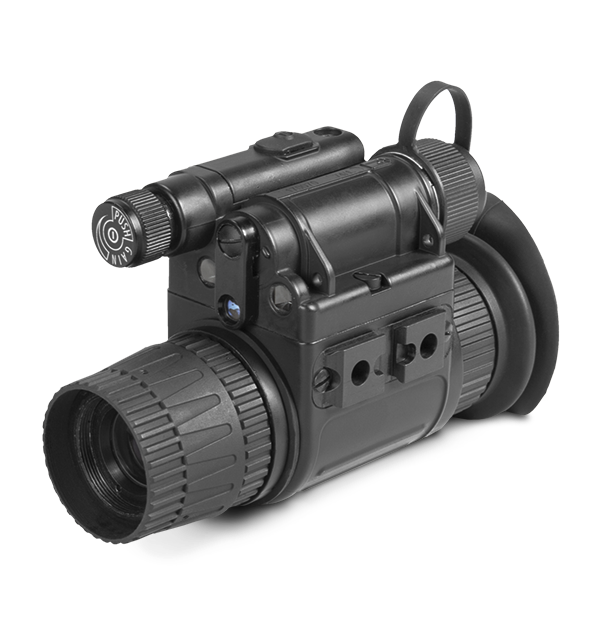

FLIR MNVD-51
51° Multi-Purpose Night Vision Monocular
With a wide 51-degree field of view, the FLIR MNVD-51 offers enhanced situational awareness without moving the optic. Head, helmet, and weapon mounting options allow hands-free operation while a built-in IR illuminator and flood lens improve vision in complete darkness. 40 hours of battery life is possible with a single AA or CR123A battery.
规格
| Highlighted | |
|---|---|
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Filmless GaAs |
| 出射光瞳直径[mm] | - |
| 分辨率 | - |
| 屈光度调节 | -6 to +2 dpt |
| 放大率 | 1x standard (3x, 5x optional) |
| 第IIT代像管等级 | FLAG - Filmless Auto-Gated IIT MG |
| 红外发光器 | Detachable Long Range IR and Built-in with pivotal flood lens |
| 自动亮度控制 | No |
| 良视距[mm] | - |
| 视场角 | 51° |
| 调焦范围 | 0.25 m to Infinity |
| 镜头系统 | F/1.26; 19mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +50°C (-58°F to +122°F) |
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 40 hours |
| 电源 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | - |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | Yes (In FOV) |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.31 kg (0.7 lbs) |
| 尺寸（长 x 宽 x 高） | 109 x 48 x 73 mm (4.1 x 1.9 x 2.8 in) |
| 配件 | |
|---|---|
| 可选附件 | Swing Arm #172, Swing Arm #37, Dual Bridge, Goggle Kit #2, Helmet Mount #4, Dovetail to Weaver Transfer Piece #21, ARMSAIGHT by FLIR Scope Adapter Mount #6, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85, Universal Camera Adapter #45, Camera Adapter #46, Demist Shield #34, Sacrificial Window #30, Shutter Eye-Guard #82, 3x Afocal Lens Kit (for MNVD-51), 5x Afocal Lens (for MNVD-51), 3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), 5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
| 随附配件 | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide |
