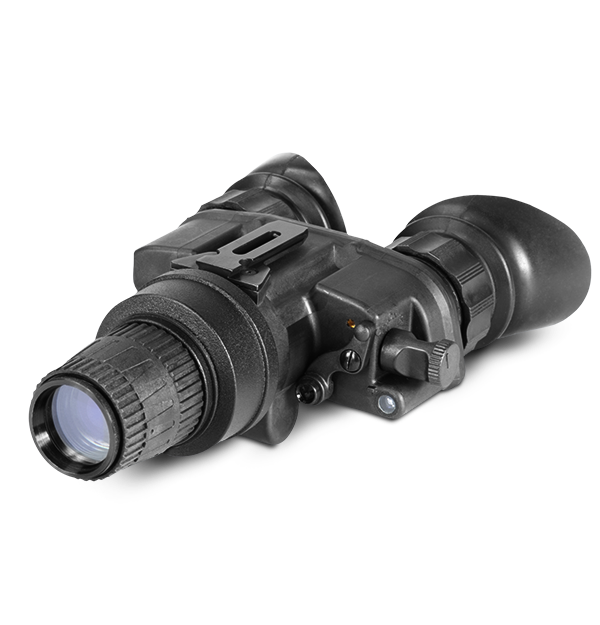

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 15 mm |
| 分辨率 | 55-72 lp/mm |
| 屈光度调节 | -6 to +2 dpt |
| 放大率 | 1x standard (3x, 5x optional) |
| 第IIT代像管等级 | Gen 2+ HD (High Definition) |
| 红外发光器 | Yes (built-in with pivotal flood lens) |
| 自动亮度控制 | Yes |
| 良视距[mm] | 15 mm |
| 视场角 | 40° |
| 调焦范围 | 0.25 m to Infinity |
| 镜头系统 | F/1.2; 27 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°C (-58°F to +158°F) |
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 60 hours |
| 电源 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | - |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | No |
| 红外指示器 | Yes (In FOV) |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.49 kg (1.0 lbs) |
| 尺寸（长 x 宽 x 高） | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| 配件 | |
|---|---|
| 可选附件 | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
| 随附配件 | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
附件
资源和支持
Datasheet
NYX7 Pro Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
