Discontinued

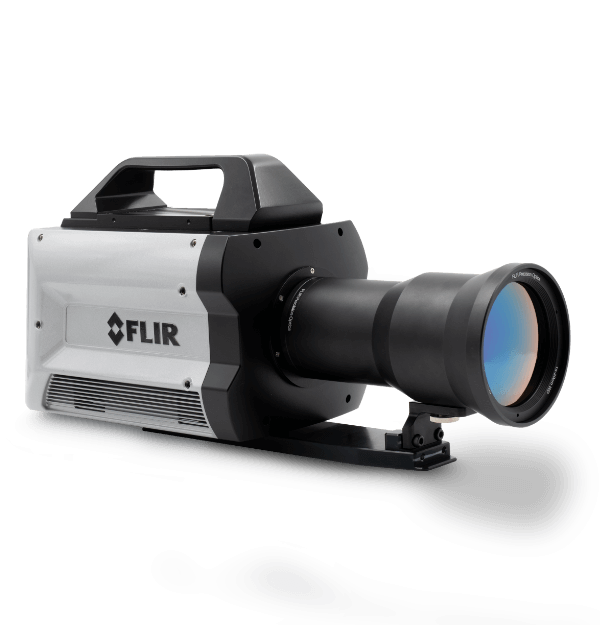

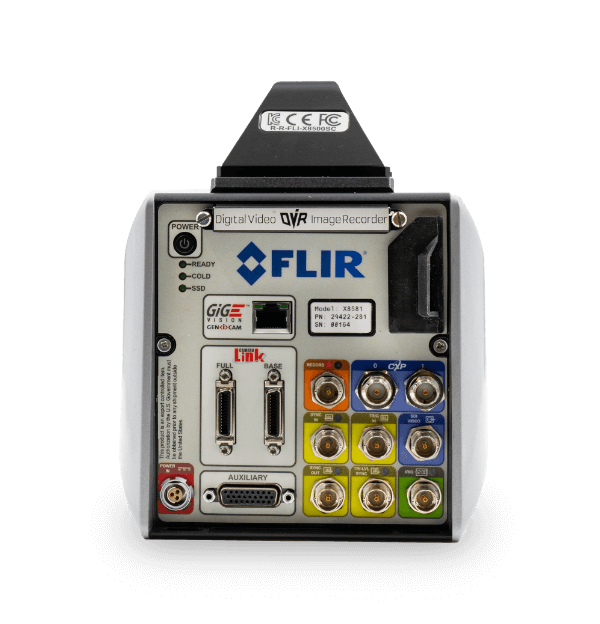

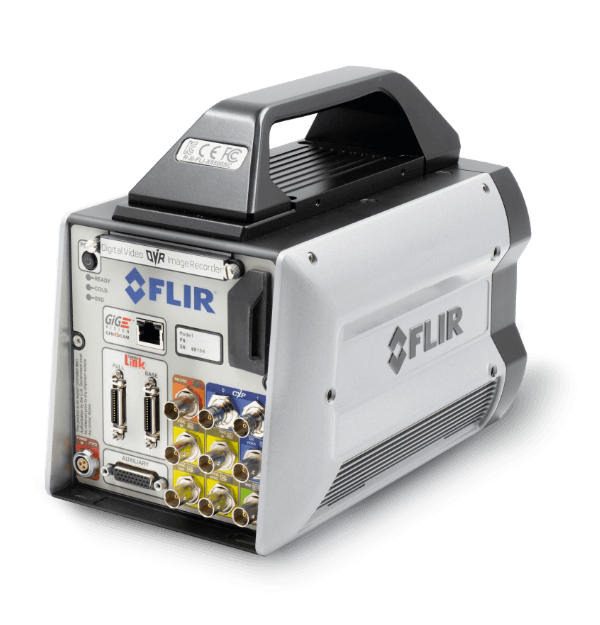

FLIR X8580™
科学级高清中波红外热像仪
Product Variations
FLIR X8580 中波红外热像仪专为科学家和工程师而设计，借助它，用户可以捕捉到快速事件的细节图像，以便进行准确的红外分析，自定义测量目标辐射数据，检测复合材料、太阳能电池和电子产品里的失效点。这款红外热像仪将 1280 × 1024 高清分辨率与高帧率和快积分时间相结合，使研究人员能够记录高速事件的每个动态细节或温度的迅速变化，—无论是在实验室环境下还是在测试范围内均是如此。X8580 搭载四位电动滤镜轮，支持 FLIR 电动调焦镜头，可提供更高质量的记录，可节省时间，使用户从容应对动态数据采集环境。。
出色的性能，极具颠覆性的功能
在热像仪内存中直接录制最长 34 秒钟，或在自带的 512 GB 固态硬盘 (SSD) 上录制最长 15 分钟的全高清 (HD) 分辨率数据
轻易地捕捉必要数据，使用触发输出和新的三级同步输出精确控制何时生成图像帧
可通过任何数字数据总线直接从 SSD 传输热数据，利用 FLIR Research Studio 软件进行高级分析
规格
| Highlighted | |
|---|---|
| Resolution | 1280 × 1024 |
| Detector Pitch | 12 µm |
| Spectral Range | X8580 InSb, X8582 InSb: 1.5–5.0 µm X8581 InSb: 3.0–5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | X8580 InSb, X8581 InSb: f/2.5 X8582 InSb: f/4.1 |
| Dynamic Range | 14-bit |
| NETD | 30 mK typical |
| Frame Rate [Full Window] | Programmable: ~0.5 Hz to 181 Hz |
| Standard Temperature Range [with band matched optics] | X8580 InSb, X8582 InSb: -20°C to 350°C (-4°F to 662°F) X8581 InSb: -20°C to 350°C (-4°F to 662°F), -10°C/14°F for microscopes |
| Optional Temperature Range [with band matched optics] | ND1: 45°C–600°C (113°F–1112°F) ND2: 250°C–2000°C (482°F–3632°F) ND3: 500°C–3000°C (957°F–5432°F) |
| Filtering | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Focus | Motorized (compatible w/manual) |
| 成像与光学 | |
|---|---|
| Available Lenses | X8580 InSb, X8582 InSb: Manual (broadband): 25 mm, 50 mm, 100 mm
Motorized (broadband): None X8581 InSb: Manual (3–5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm Motorized (3–5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | X8580 InSb, X8581 InSb: f/2.5 X8582 InSb: f/4.1 |
| Close_up Lenses_Microscopes | X8580 InSb, X8582 InSb: No broadband microscopes available X8581 InSb: 1x, 3x, 50mm close focus |
| Detector Pitch | 12 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Zoom | 1x, Auto (best fit) |
| Direct to SSD Recording | Yes, removable 512 GB SSD included |
| Download of On_Camera RAM, SSD Recordings | Transfer from SSD through GigE, CXP, or CL to Research Studio v2.1 or higher |
| Dynamic Range | 14-bit |
| Filtering | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Focus | Motorized (compatible w/manual) |
| Frame Rate [Full Window] | Programmable: ~0.5 Hz to 181 Hz |
| Image Time Stamp | Internal IRIG-B decoder clock TSPI accurate time stamp |
| Lens Interface | FLIR FPO-M (4-tab bayonet, motorized) |
| NETD | 30 mK typical |
| On Camera Image Storage | RAM (volatile): 16 GB, up to 6,500 frames full frame SSD (user-removable/non-volatile): ~15 minutes of recording with included 512 GB SSD (more than 2 hours possible with 4 TB SSD purchased separately) |
| Operability | ≥99.95% typical |
| Overlay | Customizable (ability to toggle off) |
| Palette | Selectable 8-bit |
| Pixel Clock | 355 MHz |
| Radiometric Data Streaming | Simultaneous Gigabit Ethernet (GigE Vision), Camera Link,CoaXPress® 1.1, dual 5 Gb links |
| Readout Modes | Asynchronous integrate while read, Asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 1280 × 1024 |
| Sensor Cooling | Linear sterling cooler |
| Spectral Range | X8580 InSb, X8582 InSb: 1.5–5.0 µm X8581 InSb: 3.0–5.0 µm |
| Standard Video | HDMI, SDI |
| Subwindow Modes | Flexible windowing down to 64 × 4 (steps of 64 columns, 4 rows) |
| Video Modes | HD-SDI: 720p@50/59.9Hz, 1080p@25/29.97Hz; SD-SDI: 480i@60Hz, 576i@50Hz |
| 测量与分析 | |
|---|---|
| Accuracy | ≤100°C: ±2°C (±1°C typical), >100°C: ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, ROI, DDE |
| Optional Temperature Range [with band matched optics] | ND1: 45°C–600°C (113°F–1112°F) ND2: 250°C–2000°C (482°F–3632°F) ND3: 500°C–3000°C (957°F–5432°F) |
| Standard Temperature Range [with band matched optics] | X8580 InSb, X8582 InSb: -20°C to 350°C (-4°F to 662°F) X8581 InSb: -20°C to 350°C (-4°F to 662°F), -10°C/14°F for microscopes |
| 通讯与数据存储 | |
|---|---|
| Synchronization Modes | Sync In, Sync Out, Tri-Level Sync |
| 电源 | |
|---|---|
| Power | 24 VDC (<50 W steady state) |
| 环境与认证 | |
|---|---|
| Mounting | 2 × 1/4 in -20 / 1 × 3/8 in -16 / 4 × #10 -24 / Side: 3x 1/4 in -20 (each side) |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
Accessories
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR X系列红外热像仪滤镜轮支架
- 1倍微距镜头保护窗口- MWIR & LWIR (4206654-6)
- FLIRA系列和X系列制冷型科研热像仪电源连接器（26399-000）
- FLIR X系列热像仪滤镜轮拆卸扳手 (C1004.M202)
- 3倍微距镜头保护窗口 - 仅适用于中波红外热像仪（4219929）
- 4个拓展环 0.25", 0.50", 0.75", & 1.00" 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
